Overview

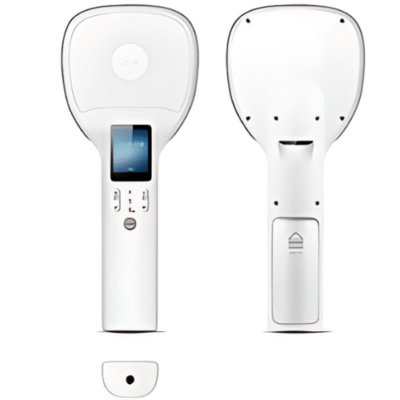

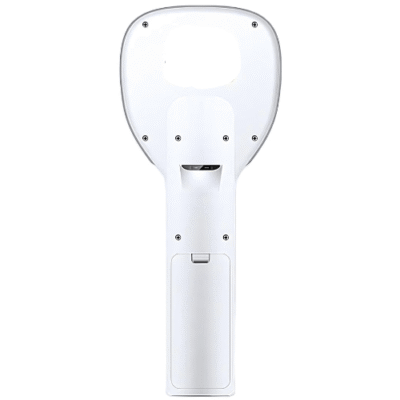

The Inventory Master Blue-tooth PDA UHF RFID Hand-Held Bluetooth Reader for Jewelry Management in Stock is a handheld Bluetooth reader with superior RFID performance. Integrated with Impinj E 710 or R 2000, it enables reading distance of 31m outdoors, and can store up to 50,000 tags. It supports optional barcode scanning and allows flexible connectivity with any smart device via Bluetooth for data transmission with ease. The RFID reader can complete tasks in inventory management, asset management, etc.
Technical Specifications
| Frequency | 920 MHz To 925 MHz ,902 MHz To 928 MHz ,865 MHz To 868 MHz |
| Protocol | EPC C1 GEN2 Or ISO18000-6C |
| Engine | CM 710-1 Module Based On Impinj E 710 CM 2000-1 Module Based On Impinj Indy R 2000 |
| Antenna | Circular Polarized Antenna (4 dBic) |
| Power | 1 W (30 dBm, Support + 5 to + 30 dBm Adjustable) 2 W Optional (33 dBm, For Latin America, etc.) |
| Fastest Read Rate | 900+ Tags Per Second |
| Max Read Range | Impinj E 710 Chip: 98.42 ft (30 m) (Impinj MR 6 Tag, Size2.75 in x 0.59 in (70 mm x 15 mm) 91.86 ft (28 m) (Impinj M 750 Tag, Size2.75 in x 0.59 in (70 mm x 15 mm) 101.70 ft (31 m) (Alien H 3 Anti-Metal Tag, Size 5.12 in x 1.65 ft (130 mm x 42 mm) Impinj R 2000 chip: 82.02 ft (25 m) (Impinj MR6 Tag, Size 2.75 in x 0.59 in (70 mm x 15 mm) 85.30 ft (26m) (Impinj M750 Tag, Size 2.75 in x 0.59 in (70 mm x 15 mm) 82.02 ft (25 m) (Alian H3 Anti-Metal Tag, Size 5.12 in x 1.65 ft (130 mm x 42 mm) |
| Display | 1.77 in (4.49 cm) 128 x 160 |
| Power | Battery Specification: 5200 mAh Standby: Over 70 hrs (Keeping Bluetooth Connected) Continuous Use: Up To 6 hrs (UHF Reading) Charging Time: 3 To 4 hrs (With Standard Adaptor And USB Cable) |
| Buzzer | Support |
| Interfaces | Micro USB |
| Indicator LED | Power, Work, Bluetooth |
| Product Material | Plastic |
| Color | White |
| 2 D Imager Scanner | SE 2707 |
| 1 D Symbologies | UPC Or EAN, Code 128, Code 39, Code 93, Code 11, Interleaved 2 Of 5, Discrete 2 Of 5, Chinese 2 Of 5, Code Bar, MSI, RSS, etc. |
| 2 D Symbologies | PDF 417, Micro PDF 417, Composite, RSS, TLC-39, Data Matrix, QR code, Micro QR code, Aztec, Maxi Code; Postal Codes: US Post Net, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX), etc. |
| MCU | Cortex-M3 72 MHz |
| Storage | 50000 Tags |
| SDK | Android Or iOS |
| Language | Java Or Objective-C |
| Tool | Android Studio Or X code |
| BT | BT 4.0 |
| Drop Specification | Multiple 4.9 ft (1.5 m) Drops (At Least 20 Times) To The Concrete Across The Operating Temperature Range |
| Tumble Specification | 1.64 ft x 3280.84 ft (0.5 m x 1000 m) Falls At Room Temperature |
| Sealing | Host IP 65 per IEC Sealing Specifications |
| ESD | ± 15 KV Air Discharge, ± 6 KV Conductive Discharge |
| Humidity | 5 % RH To 95 % RH Noncondensing |
| Operating Temp. | -4 °F To 122 °F (-20 °C To 50 °C) |
| Storage Temp. | -40 °F To 158 °F (-40 °C To 70 °C) |
| Dimensions | 11.10 in x 4.63 in x 1.26 in (282 mm x 117.5 mm x 32 mm) |
| Weight | 11.78 oz (334 g) (With Battery) |
