Overview

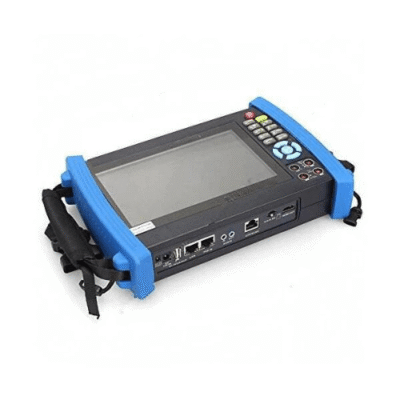

The Inventory Master CCTV IP Camera Tester is utilized to gauge the overall signal strength in a video, while the PEAK signal level indicates the highest point of signal amplitude. Additionally, the SYNC signal level measures the strength of synchronization signals, ensuring proper timing in the video signal.
Features
- 7″ Retina touch screen, 1920 x 1200 resolutions
- 265 & H.264 IP, 4 K video display via mainstream
- 8MP TVI, AHD, CVI, EX-SDI, HD-SDI, 3G-SDI tests with zoom, video record or playback, coaxial PTZ control & OSD menu
- Rapid ON-VIF, Auto log-in, testing reports, AXIS & Hikvision camera tests
- CVBS camera test and PTZ control
- IPC TEST, HIK & DH test tools
- Video level meter, DC12 V or 2 A and 48 V PoE power output
- PoE power or voltage measurement
- HDMI input, 720 p to 4 K display, record, and snapshot
- Traffic monitoring, real-time upload or download speeds
- Self-update software, media player, quick office app
- 4 V or 7000 mAh Li-Ion Polymer Battery, 16 hours of working time after 7 to 8 hours charging
- Top of Form.
Technical Specification
| Data Monitor | Captures and analyzes the command data from controlling device |
| Photograph, Video record, Record playback | Snapshot, Video record, views the storage file in the SD card. |
| Network testing | IP address scan, Link monitor, PING test. Scan the ID of the PTZ camera quickly |
| POE tester | Display the power supply voltage and cable connection states |
| Digital Multimeter optional | Voltage, current, resistance and capacitance measuring, continuity testing, diode test |
| Battery | Built-in 3.7 V Lithium polymer battery, 12000 mAh |
| Rechargeable | After charging 8 to 10 hours, working time lasts 16 hours |
| Power Adapter | DC 5 V (2.5 A to 3.0 A) |
| Working Temperature | 50 °F to 122 °F (-10 °C to +50 °C) |
| Working Humidity | 30% to 90% |
| Dimension | 9.09 in x 6.6 in x 2.04 in (231 mm x 172 mm x 52 mm) |
| Weight | 2.8 Lb (1.26 kg) |
