Overview

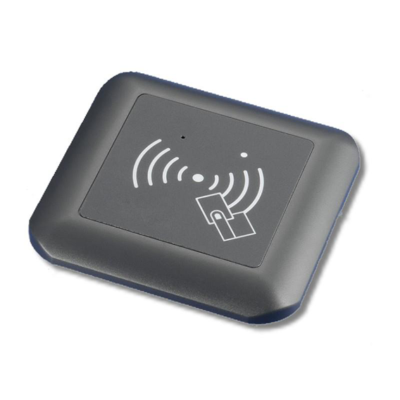

This configurable Mifare® sector reader can read Mifare® cards using Mifare Application Directory standard (MAD) sectors as well as non-MAD sectors. The reader can be configured to read either MAD1 and MAD2 sectors or the user-defined (Non-MAD) sector. The reader also has an ID number which can be set ind transmitted in the case where multi-unit communications is required. Avialable output interface include RS232, Wiegand or MSR ABA TK2.
Key Features – Configurable Mifare® Sector Reader
- Can be installed on or near metal surfaces
- Reads MAD1 and MAD2 sectors and user MAD-AID (registered application identifeiers)
- Reads Non-MAD user-defined sector Supports Multi Sectors
- Reads Mifare® Standard 4000 or Mifare® Standard 1000 card
- Reader ID number for multi-reader applications
- Three available output interfaces: Wiegand (Default), RS232 and MSR ABA TK2
- Selectable Wiegand output from 26 bits to 128 bits
- RS232 output packet can be set with Header, Reader ID and trailer
- Configurable Internal LED and buzzer
- Weather resistant
Technical Specifications
| Frequency | 13.56 MHz |
| Card Format | MAD1 / MAD2 |
| Card Type | Mifare MF1 standard cards for 1024/4096 bytes |
| Maximum Read Distance | Up to 50 mm with MFA01 card in ideal conditions |
| Power Requirements | 7.5 V to 24 V, a linear regulator is recommended |
| Interface | Wiegand 26 bits to 128 bits selectable, RS232, MSR ABA TK2 |
| Audio / Visual Indication | LED/Buzzer indication |
| Housing Material | ABS |
| Operating Temperature | 0 °C to 60 °C |
| Operating Relative Humidity | 10% to 90% |
| Dimensions | 105 mm × 105 mm × 18 mm |
