Overview

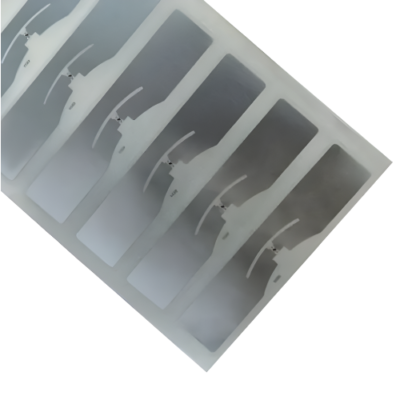

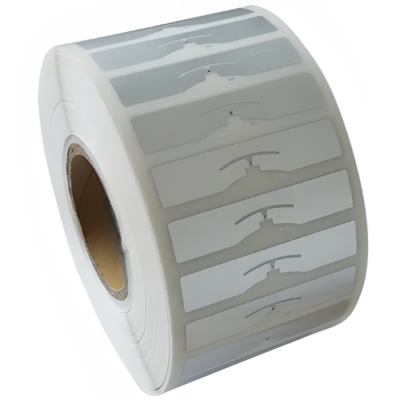

The Inventory Master Electronic Label UHF RFID RF Tag wet inlay can be custom and programmed to match the system and are available with the logo and message. With the ability to withstand outdoor weather, harsh environments, and high impact, RFID tags will benefit most from difficult applications. Orders for blank, pre-printed, or pre-encoded tags are all available.
Technical Specifications
| Frequency | 860 MHz to 960 MHz |
| Protocol | ISO18000-6C or EPC GEN2 |
| Special Features | MINI TAG |
| Communication Interface | RFID |
| Chip | H3 |
| Antenna Material | Aluminium |
| Process | Etching |
| Read Range | About 26.2 ft (8 m) (Depends on reader) |
| Label Type | Passive, Read or Write |
| Substrate Material | White Paper |
| Working Mode | Passive |
| Unique TID | 64 Bits |
| User Memory | 128 Bits |
| EPC | 128 Bits (Extensible to 496 bits) |
| Working Temperature | -13 ℉ to 140 ℉ (-25 ℃ to +60 ℃) |
| Antenna Size | 3.6 in X 0.7 in (93 mm X 19 mm) |
| Finished Size | 3.7 in X 0.9 in (96.5 mm X 23.2 mm) |
