Overview

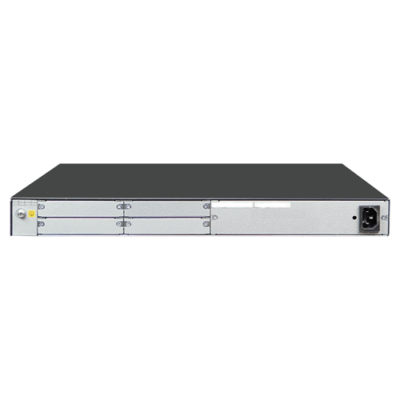

The Inventory Master enterprise 5G Wi-Fi routers are designed for the headquarters of medium-sized enterprises or branches of medium-sized enterprises, mainly in broadband, private line access, voice and security scenarios. It adopts multi-core CPU and non-blocking switching architecture and has flexible service scalability to meet the service requirements of different enterprise users.
Technical Specification
| Amount of machine | 3000 set |
| Interface number | 3GE WAN (1GE Combo) ，24 GE (8 POE) |
| Weight | 16.75 lb (7.6 kg) |
| Size | 1.75 in x 16.85 in x 17.40 in (44.4 mm x 428.2 mm x 442 mm) |
| Connect | RJ45 |
| belt weigher | 300 PCS |
| transmission performance | 2 Mpps |
| Fixed port | 3 × GE (1 × Combo), 24 × GE |
| Page Slot | SIC slot: 4 WSIC slot (default or Max.): 0/0 XISC slot (default or maximum): 0/0 |
| Number of apps that can be managed | 12 (4 AP free) |
| interface type | Supports FE, GE, 155M POS/CPOS, 622M POS, EPON or GPON, synchronous serial port, E1 or CE1, 3G or LTE, and other interfaces (no slot type does not support expansion interfaces) |
| security | Supports MAC, 802.1x, Portal authentication, broadcast suppression, ARP security, local authentication, AAA authentication, and RADIUS authentication Supports packet filtering firewalls and firewall security domains IPSec VPN, L2TP VPN, DSVPN and other VPN technologies are supported Supports the IPS security function to update the signature database online and defend against attacks such as Trojan horses, worms, and viruses Supports URL filtering function, can filter the specified domain name of the website supports the encryption algorithm specified by the National Cryptography Bureau |
| QoS | The QoS mechanism supports PQ, CQ, WFQ, and CBWFQ scheduling technologies, traffic classification based on IP Precedence, 802.1P, DSCP, and MPLS EXP, traffic shaping, and WRED congestion avoidance mechanisms Support equal-cost load Sharing (ECMP) and non-equal-cost load Sharing (UCMP) Support online behavior management, can identify but not limited to: BT, thunder, Super cyclone, eDonkey (eMule), Skype, PPLive, PPStream, etc. |
| reliability | All SPUs support direct hot swap It supports intelligent policy-based routing (SPR) technology and dynamically selects the best link according to the network quality of multiple links |
