Overview

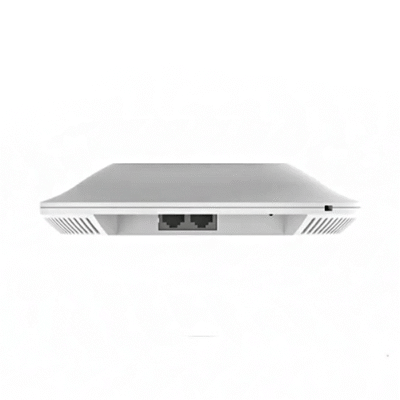

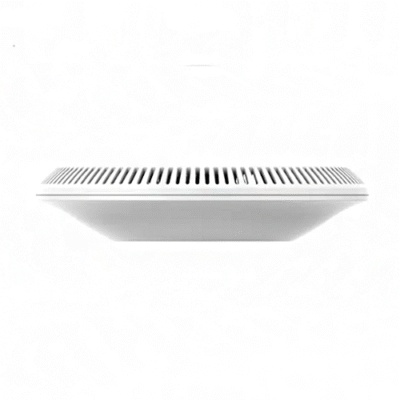

The Inventory Master enterprise grade access point is an enterprise-grade 802.11ax Wi-Fi 6 access point that allows businesses to build next-generation Wi-Fi networks for high-density environments. It offers dual-band 2×2:2 MU-MIMO with DL or UL OFDMA technology and a sophisticated antenna design for maximum network throughput and expanded Wi-Fi coverage range. To ensure easy installation and management, the GWN7660 uses a controller-less distributed network management design in which the controller is embedded within the product’s Web user interface. The GWN7660 is also supported by Gynecoid and GWN Manager, Grand stream’s cloud and on-premises Wi-Fi management platform. It is the ideal Wi-Fi AP for voiceover-Wi-Fi deployments and offers a seamless connection with Grand stream’s Wi-Fi capable IP phones. With support for advanced QoS, low-latency real-time applications, mesh networks, captive portals, 256 concurrent clients per AP and dual Gigabit network ports with PoE or PoE+, GWN7660 is an ideal Wi-Fi access point for medium wireless network deployments with medium-to-high user density.
Features
- 77 Gbps aggregate wireless throughput
- Dual band 2×2:2 MUMIMO with DL or UL OFDMA technology
- Up to 175-meter coverage range
- Supports 256 concurrent Wi-Fi client devices.
- Advanced QoS to ensure real-time performance
- Anti-hacking secure boot and critical data/control lockdown
- Self-power adaptation upon auto detection of PoE or PoE+
- Embedded controller can manage up to 50 local GWN
Technical Specifications
| Wi-fi Standards | IEEE 802.11 a or b or g or n or ac or ax |
| Antennas | 2 dual band internal antennas2.4GHz, gain 3dBi or 5 GHz, gain 4dBi |
| Wi-fi Data Rates | 5G:IEEE 802.11ax: 7.3 Mbps to 1201 Mbps IEEE 802.11ac: 6.5 Mbps to 867 Mbps IEEE 802.11n: 6.5 Mbps to 300 Mbps 2.4G: IEEE 802.11ax: 7.3 Mbps to 573.5 Mbps IEEE 802.11n: 6.5 Mbps to 300 Mbps IEEE 802.11b: 1, 2, 5.5, 11 Mbps IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| Frequency Bands | 2.4 GHz radio: 2400 MHz to 2483.5 MHz5 GHz radio: 5150 MHz to 5850 MHz |
| Channel Bandwidth | 2.4 G: 20 and 40 MHz5 G: 20,40 and 80 MHz |
| Wi-fi And System Security | WEP, WPA or WPA2-PSK, WPA or WPA2 Enterprise (TKIP or AES); WPA3, anti-hacking secure boot and critical data or control lockdown via digital signatures, unique security certificate and random default password per device |
| MIMO | 2×2: 2 2.4 GHz2×2: 2 5 GHz |
| Coverage Range | Up to 175 meters |
| Maximum TX Power | 5 G: 22 dBm2.4 G: 24 dBm |
| Receiver Sensitivity | 2.4 G:802.11 b: -96 dBm at 1 Mbps, -88 dBm at 11 Mbps 802.11 g: -93 dBm at 6 Mbps, -75dBm at 5 Mbps 802.11n 20 MHz: -73 dBm at MCS7 802.11n 40 MHz: -70 dBm at MCS7 802.11ax 20 MHz: -60 dBm at MCS11 802.11ax 40 MHz: -58 dBm at MCS11 5 G: 802.11a: -92 dBm at 6 Mbps, -74 dBm at 54 Mbps 802.11n 20 MHz: -73 dBm at MCS7 802.11n 40 MHz: -70 dBm at MCS7 802.11ac 20 MHz: -67 dBm at MCS8 802.11ac: 40 MHz: -63 dBm at MCS9 802.11ac 80 MHz: -59 dBm at MCS9 802.11ax 20 MHz: -60 dBm at MCS11 802.11ax 40 MHz: -58 dBm at MCS11 802.11ax 80 MHz: -56 dBm at MCS11 |
