The Inventory Master Ethernet Analyzer with Multi-Interface Testing

The Inventory Master Ethernet Analyzer with Multi-Interface Testing

Ethernet analyzer with multi-interface testing, real-time results, long battery life, and easy on-site installation and maintenance.

SKU: TIMMIEA-100 Category:

Overview

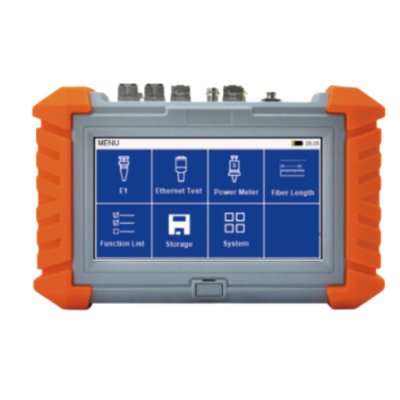

This The Inventory Master Ethernet Analyzer is a versatile integrated Ethernet data tester, combining multiple physical interfaces, including E1/V.35, 10M/100M/1000M/10G Ethernet, as well as optical power meter and OTDR testing capabilities. It is designed for ease of use and portability, its intuitive display interface provides real-time test results, clearly indicating pass or fail status. This significantly reduces on-site installation, commissioning, and maintenance efforts for engineers and technical personnel, saving considerable time and improving operational efficiency.



Technical Specifications

Specifications
10M/100M/1000M/10G Ethernet Test E1/V.35 Test
  • High line rate IP Ping test
  • Provide RFC2544 (throughput, delay, packet loss, back-to- back) functional test
  • Y.1564 (service configuration test, service performance test)
  • Provide IP address checking
  • DFTP server tests the upstream and downstream channel bandwidth
  • Optical interface supports

    850nm/1300nm/1310nm/1550nm

  • Provides 75 Ω unbalanced and 120 Ω balanced interfaces of E1
  • Support Bert bit error characteristic test (G.821, G.826, M.2100/550)
  • Support frame relay, HDLC and PPP protocol testing
  • Support Ping and loopback Ping tests on E1 and V.35 links
  • Automatic detection of destination IP address (HDLC/PPP/FR) function
  • Support 30B+D voice call function
Optical Power Meter Test OTDR Test


  • Test wavelength: 850nm/1300nm/1310nm/1550nm/1625nm
  • Test range: +26~ -50dBm or +10~ -70dBm





VLF Test



  • Working wavelength: 650nm LD
  • Output power: 6mw
  • Max test range:8~10 km
  • Optical connector:2.5mm universal (FC/SC/ST)
  • Wavelength: 1550nm±20nm
  • Maximum measuring distance: 0~80km Dynamic range: 20dB
  •       Event dead zone: <3m
  • Distance accuracy: ± (1m+0.1% * distance) Graphical interface: support
  • Support detection of overall loss, event point loss and fiber attenuation
Others


Storage

Can store 1000 test results, can be displayed or printed on the screen
Monitor High resolution 7-inch color LCD display, touch screen with LED backlight
Battery Intelligent lithium battery 8000 mAh, 12.6 V operation time: 4 hours; charging time: 5 hours
Charger        12.6V@3A, 90 to 265VAC, 50 Hz to 60 Hz
Working Temp 32 °F to 122 °F (0 ℃ to +50 ℃)
Storage Temp -4 °F to 158 °F (-20 ℃ to +70 ℃)
Humidity      0~90% (Non condensing)
Dimension     9.06 in × 5.12 in × 2.36 in (230 mm x130 mm x 60 mm)
Weight         5.51 lb. (2.5 kg)
