Overview

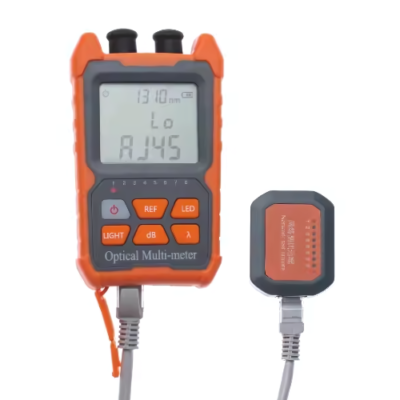

The Inventory Master Ethernet Cable Tracer Testercan be well protected by using embedded detector and laser. The whole machine has automatic shutdown function, three red light modes, backlight display, wavelength memory function, user calibration, wide test range, lighting, RJ45 cable sequence and cable tracker test functions.
Features
- Support lighting
- Support wave memory when shut down
- Support backlight switch, automatic shutdown
- Support RJ45 test (optional)
- Support working frequency identification (optional)
- Always on and flashing red light (optional)
Technical Specifications
| Wave Range | 800 nm to 1700 nm |
| Connector | Universal FC, SC, ST |
| Detector Type | InGaAs |
| Uncertainty | ±5% |
| Calibration Wave | 850 nm, 980 nm, 1300 nm, 1310 nm, 1490 nm, 155 nm, 1625 nm, 1650 nm |
| Wave | 650 nm ± 30 nm |
| Output Power | 2 mW, 10 mW, 30 mW, 50 mW |
| Mode | CW, 1 Hz, 2 Hz |
| Connector | Universal FC, SC, ST |
| Power Supply | Two AAA Batteries, 700 mAh Rechargeable lithium Battery (options) |
| Power Range | -70 dBm to +6 dBm |
| Linear Display | 0.1% |
| Logarithmic Display | 0.01 dBm |
