Overview

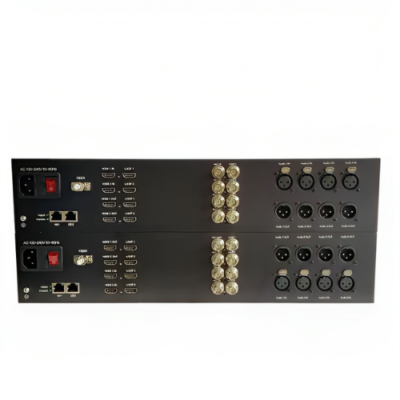

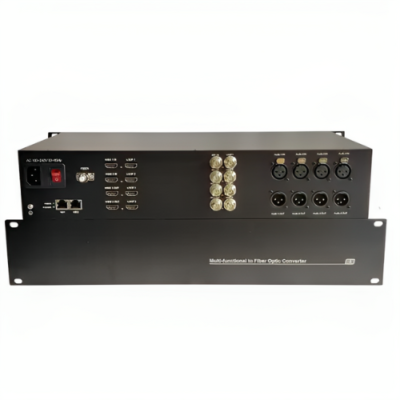

The Inventory Master ethernet fiber converter has a transmitter and receiver, which can extend the audio, video and USB of the computer host to the remote end (USB keyboard, mouse and touch screen). Users can receive the image and sound of the computer host in real time at the remote end and use the computer. Support HDMI multi – mode optical terminal HDMI video single mode optical terminal. This product supports the real-time transmission of HDMI or HDMI HD audio and video, with the maximum resolution of 3840 × 2160 at 30 Hz and the maximum transmission distance of 6.21 mi (10 km).
Features
- Support Single Mode Single Fiber up to 12.42 mi (20 Km)
- Support Multimode Dual Fiber 1.24 mi (2 Km)
- Support All Models up to 4 K × 2 K at 30 Hz Resolution
- Support HDMI 1.4 and HCCP 1.2
- Support uncompressed transmission, No delay & losses
- Support DDC CED HPD SIGNAL
Technical Specifications
| Wavelength | 1310 nm to 1550 nm |
| Bit rate | 10 Gbps |
| Tx power | ＞-5 db |
| Rx sensitivity | ＞-14 db |
| Fiber connector | LC |
| Video bandwidth | 10 Gbps |
| Maximum resolution | 4096 × 2160 at 30Hz downward compatibility |
| Maximum pixel clock | 297 MHZ |
| Effective cable length | 32.80 ft (10 m) |
| Physical interface | HDMI female |
| Sampling frequency | 48 K |
| Sampling depth | 24 bits |
| Dynamic bandwidth | 96 db |
| Total harmonical distortion (THD) | -88 db |
| Signal to noise ratio (SNR） | 96 db |
| Audio input/output impedance | 600 ohms |
| Signal level | VPP 3.5 V |
| Physical interface | 0.13 in (3.5 mm) stereo audio socket |
| Signal type | stereo audio |
| Operating temperature | -4 ⁰F to 167 ⁰F (-20 °C to 75 °C) |
| Storage temperature | -40 ⁰F to 185 ⁰F (-40 °C to 85 °C) |
| Storage humidity | 0 % to 95 % RH |
| Power supply | 12 V 1 A |
| Power dissipation | ＜ 1.5 W |
| Single gross weight | 18.73 lb. (8.5 kg) |
| Dimension | 16.61 in × 9.05 in × 3.54 in (422 mm × 230 mm × 90 mm) |
