Overview

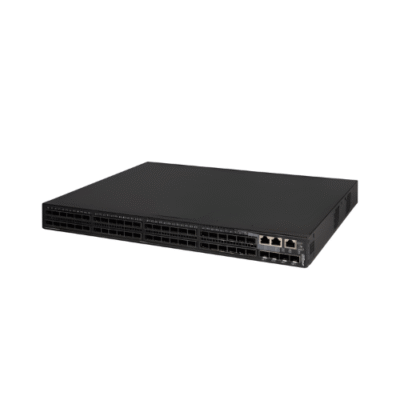

The Inventory Master Ethernet Layer Router Network Switch can provide Gigabit access to end users or connect low-end users downward Switch, which can be converted to the core switch through gigabit or 40GE fiber or link aggregation. The Ethernet switches support innovative V x LAN technology, which can simultaneously support V x LAN two- and three-layer networks.
Technical Specifications
| USB Mouth Management Network Port | 1 1 |
| Management String mouth | 1 RJ-45 Console port, 1 Micro USB Console port (not simultaneous, Micro USB preferred) |
| Extended Slot | 1 |
| Extended Card | 4-port 10 / 100 / 1000 BASE-T + 6-port SFP interface board 2 port 40GE QSFP + interface board 2 port SFP + interface board 2-port 8 port SFP + interface board 12 port SFP + interface board * 2-port 25 G SFP28 Ethernet Optical Interface module 8-port 1 G /2.5 G /5 G /10 G BASE-T Ethernet Electrical Interface Module 8-port 1 G/2.5 G/5 G BASE-T Ether 4-port 40 G / 100 G interface board |
| Jumbo Frame | Support has a maximum frame length of 10,000 |
| MAC Address list | Support static, dynamic, black hole MAC address support source MAC address filtering support to set the port to learn the maximum number of MAC addresses |
| Green Energy Saving | Port automatic Power down function Port timing down function (Schedule job) supports EEE (802.3az) energy saving standard |
| input Voltage | Non-PoE type input power supply: AC: Rated voltage range: 100 V to 240 V AC, 50 Hz or 60 Hz DC: input rated voltage range-48 V to 60 V DC PoE Type input power supply: 360 W AC: 100 V to 240 V, 50 Hz to 60 Hz 720 W AC: 100 V to 240 V, 50 Hz to 60 Hz 1110 W AC: 115 V to 240 V, 50 Hz to 60 Hz 560 W DC: -48 V to 60 V DC |
