Overview
The Inventory Master ethernet testers provide highly accurate power measurements, as well as reference value setting capabilities. It offers power autonomy of 300 hrs, for reliable, long to lasting performance in the field.
Features
- Easy to use interface for error to free testing
- Interchangeable connectors, for first to class flexibility
- Cost to effective, rugged and highly reliable;
- Ideal for testing and troubleshooting optical premises networks

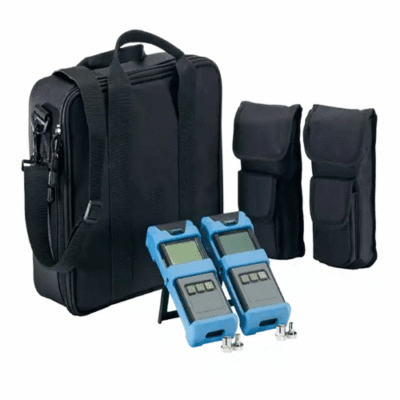

- Available as stand to alone units or in all to in to one test kits including all required accessories
- Five test kits designed for specific users or testing needs:
- LAN, outside plant, contractors, FTTH and CATV
Technical Specifications
| Power Meter Port | InGaAs, InGaAsX |
| Power Range | 10 dBm to –60 dBm, 26 dBm to –50 dBm |
| Number Of Calibrated Wavelengths | 5 |
| Power Uncertainty | ±5 % |
| Resolution | 0.01 dB |
| Display Units | dB or dBm or W |
| Tone Detection | 270 Hz, 1 kHz, 2 kHz |
| Battery Life | >300 hrs |
| Temperature | Operating: 14 °F to 122 °F (-10 °C to 50 °C) Storage: -40 °F to 158 °F (-40 °C to 70 °C) |
| Relative Humidity | 0% to 95% non to condensing |
| Size | 7.44 in x 3.07 in x 1.46 in (189 mm x 78 mm x 37 mm) |
| Weight | 0.88 lb (0.4 kg) |
