Overview

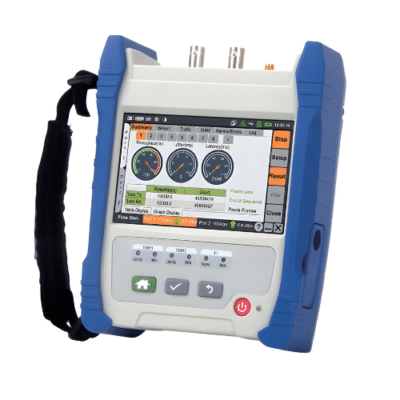

The Inventory Master Ethernet Tester supports testing for speeds up to 1Gbps. The TC602RE adds a suite of E1, SyncE, and IEEE1588v2 testing functions for even wider utility. It’s the next generation of telecommunication systems analysis, serving the growing need for high-speed metropolitan access and wireless backhaul at unmatched cost performance.
Features
- Complete solution for activating
- Verifying & fault-diagnosing Ethernet service
- 5” (800×480) color LCD touchscreen
- Dual or single 1000Base-X SFP ports
- Perform two measurements simultaneously
- Dual or single 10/100/1000 RJ45 ports
- Convenient and intuitive user interface
- Integrates mutiple software tools
- Ensuring high Cost-per formance
- PDF and CSV data report generation
- Rechargeable lithium battery powers
- Use for over 3.5 hours (4 hours idle)
Technical Specifications
| Application | Ethernet measurement |
| Screen | 5 in 800 x 480 color LCD touchscreen |
| RFC2544 | support |
| Y1564 | support |
| BERT | support |
| External Port | USB, LAN RJ45 |
| Working Time | 7 hours |
| Charging Time | 5 hours |
| Relative Humidity | 0 to 95 % |
| Operating Temperature | 14 °F to 122 °F (- 10 ℃ to + 50 ℃) |
| Storage Temperature | – 4 °F to 158 °F (- 20 ℃ to + 70 ℃) |
| Dimension | 7 in x 5.7 in x 2.2 in (179 mm x 145 mm x 56 mm) |
| Weight with Battery | 1.7 lb (0.8 kg) |
