Overview

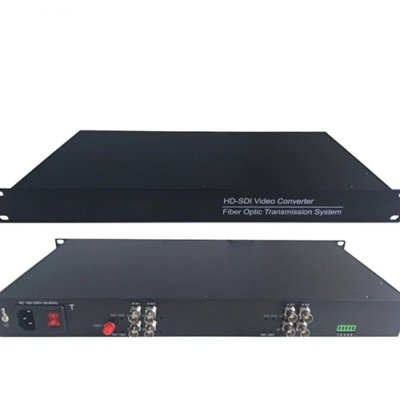

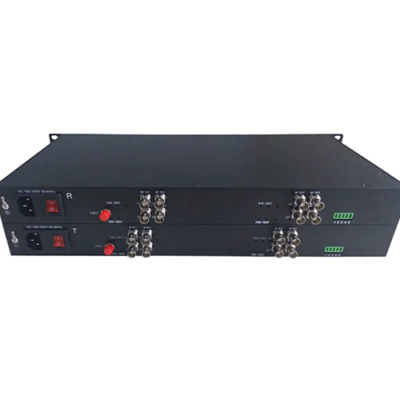

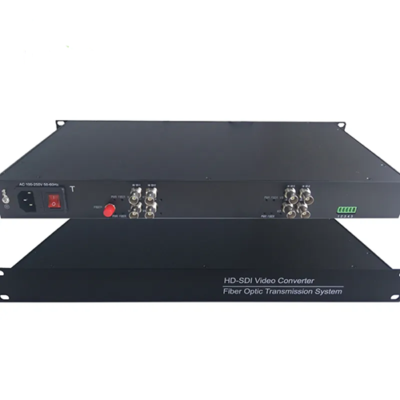

The Inventory Master Fiber Converter 3 G SDI to Optic Fiber Extender adopts the uncompressed digital HD video and high-speed digital optical fiber transmission technology advanced, It can transfer signal source (computer signal source, VGA signal source, high digital DVD or DVR and various resolution HDMI signal) to long distance terminal easily, with local VGA loop through, independent analog audio, reverse 232 serial port, with strong anti-interference performance, ensure the signal completed and stable.
Features
- Fully digital, Uncompressed HD optical fiber transmission
- Support Full HD 1920 x 1200 at 60 Hz
- The attenuation of optical module SFP low to -3 dB
- 1 channel analog audio 0.13 in (3.5 mm)
- Support HDMI 1.3 b Protocol
- Automatic identification and configure display mode
- Automatic equalization inside, stable and clear graphics
- ESD protection circuit inside, to ensure the ESD damage
- Easily to installation, plug and play, no need to set up
Technical Specification
| Interface | Transmitter and Receiver |
| Fiber IN | SC signal input port |
| SDI OUT | SDI signal output port |
| OPT | Fiber input port |
| AUDIO IN | Audio input port |
| AUDIO OUT | Audio output port |
| DC 12 V | 12 V Power port |
| R T G | RS232 port R (Receive) T (Transmit) G (Ground) |
| Temperature | 23 °F to 167 °F (-5 °C to 75 °C) |
| Humidity | 5 % to 90 % RH (no condensation) |
| The signal of Input and output | SDI |
| Protocol | HDCP1.2 |
| Pixel band width | 165MHz |
| Video format | Support 1920*1200 and all format below |
| The signal of Audio input and output | 3.5 MM Audio |
| Audio format | 44.1 K, 48 K, 96 K, 176 K, 192 K |
| RS232 port | 3 ports industrial terminal |
| RS232 Baud rate | Support 115200 and all below |
| RS 232 Data bits | 8 bits |
| Fiber port | LC SC FC |
| Fiber module | SFP single mode |
| Fiber wavelength | 1310 nm or 1550 nm |
| Fiber band width | 3 Gbps |
| Transmission distance of HDMI and Audio | 12.42 mi to 24.85 mi (20 km to 40 km) |
| Input voltage | DC 12 V, inside + outside – |
