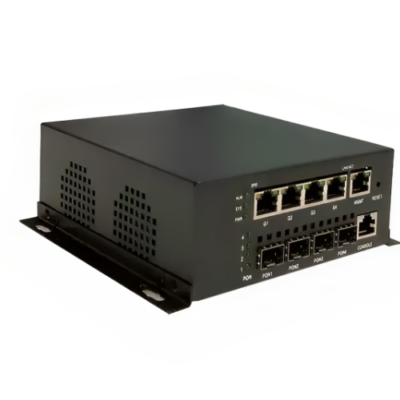

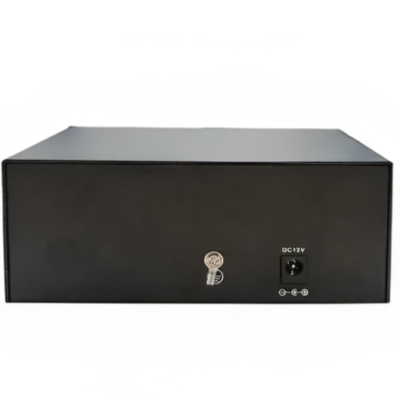

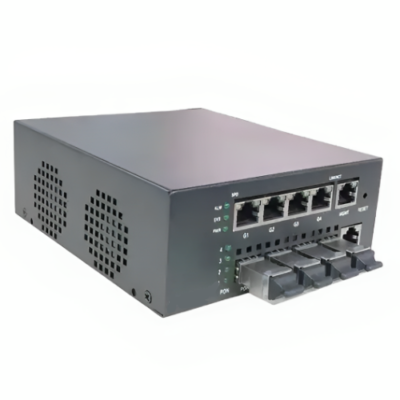

The Inventory Master Fiber Optic Receiver

This Fiber Optic Receiver has 4 gigabit SFP PON ports, wavelength of 1310 (RX) or 1490 (TX), receiving sensitivity of –27 dBm and 16 K MAC.

SKU: TIMGBFC-186 Category:

Features

  • 4 SFP PON ports, 1000M RJ 45 Uplink ports
  • Each PON port supports 1:64 split ratio
  • Total 256 ONUs access capability
  • 42 mi (20 km) distance under 1:32 split ratio
  • Ideal for large area, integrated network access
  • Surveillance transmission



Technical Specifications

Wavelength1310 (RX) or 1490 (TX)
Optical power+2.5 dBm to +7 dBm
Receiving Sensitivity-27 dBm
Maximum distance12.42 mi (20 km)
Maximum optic ratio1:64
Capacity4PON System, 256
MAC16 K
Port4 Gigabit SFP PON ports
4 GE Uplink ports
1 FE management port
1 RS 232 DB9 serial port
MTBF100000 hours
StandardSupport IEEE 802.3, IEEE 802.3u,
IEEE 802.3 ab
Support IEEE 802.1Q VLAN
Support IEEE 802.1P QoS
