Overview

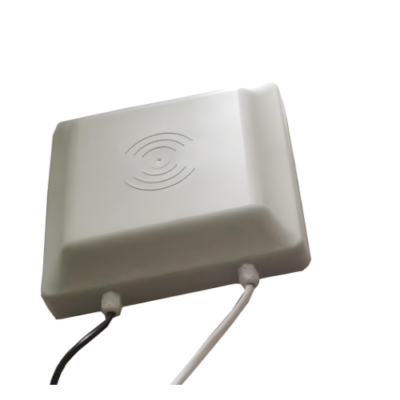

The Inventory Master product is high-performance UHF RFID integrated reader is designed upon fully self-intellectual property. Based on proprietary efficiency. The digital signal processing algorithm supports fast tag read and write operations with a high identification rate. It can be wide. Applied in many RFID application systems such as logistics, access control, and anti-counterfeit and industrial production process control systems.
Features
- Self-intellectual property.
- Support ISO18000-6C (EPC C1G2) protocol tag.
- 6 MHz to 868 MHz frequency band.
- FHSS or Fix Frequency transmission.
- RF output power up to 30 dbm (adjustable).
- Optional 2 dBi antenna, range > 32.8 ft (10 m)
Technical Specifications
| Frequency | 860 MHz to 960 Mhz |
| Standard | EPC C1 GEN2 or ISO 18000-6C |
| Interface | RS 232 or RS 485 (TCP or IP upon to custom) |
| Output Power | 0 dBm to 30 dBm (Adjustable) |
| Software | C++ or VB or VC or C++ or JAVA |
| Applications | Warehouse Management, Parking lot, Logistics Management, UHF Animal Management |
| Reading Distance | 0 ft to 19.69 ft (0 m to 6 m) or more than 32.81 ft (10 m) |
| Size | 10.04 in x 10.04 in x 2.24 in (255 mm × 255 mm × 57 mm) |
