Overview

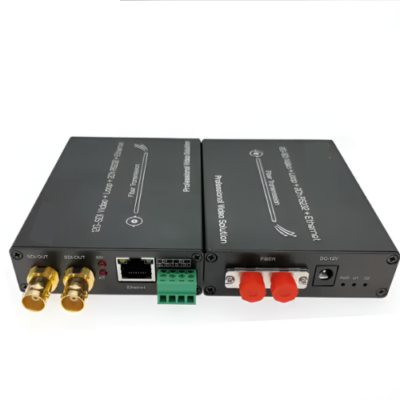

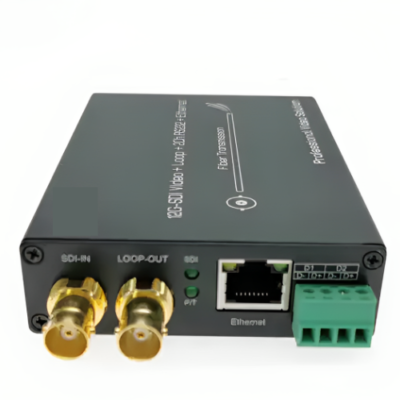

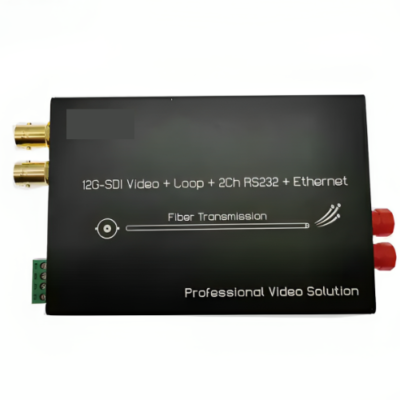

The Inventory Master gigabit ethernet has 1 Ch 12 G Video (audio embedded) &1 Ch Gigabit Ethernet & 2 Ch Backward RS 485 transmitted via fiber optical cable and monitor the signal locally over a 12 G loop output. E-link 12 G Video over Fiber Converters includes one transmitter and one receiver for HDTV 4K × 2K (3840 × 2160 at 60 Hz), 1080P，1080I, 720 P.
Technical Specifications
| Formats | Supports ST-2082-1(12 G),ST-2081-1(6 G), ST-424 (3 G),ST-292 (HD) And ST- 259(SD) |
| Compatible | Compatible With DVB-ASI and AES10 (MADI) |
| Input | 1 x 12G-SDI on BNC |
| Supported Resolution | HDTV 4 K × 2 K, 1080 P, 1080 I, 720 P |
| Power Consumption | 6 W (Max.) |
| Operating Temperature | 14 ⁰F to 158 ⁰F (-10 ℃ to 70 ℃) |
| Dimensions | 4.60 in x 3.14 in x 0.94 in (117 mm x 80 mm x 24 mm) |
| Power | 12 VDC |
