Overview

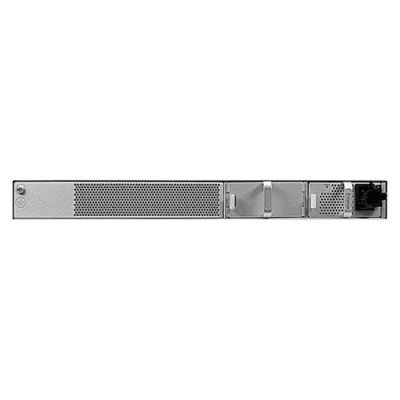

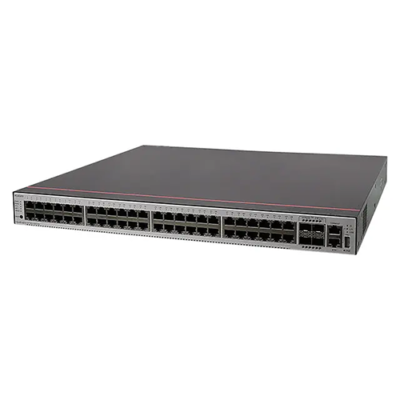

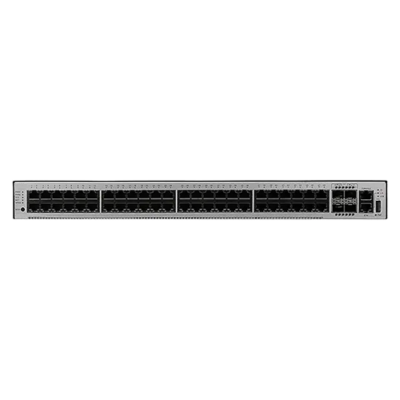

The Inventory Master Gigabit Ethernet switches are a standard gigabit ethernet switch that provides all GE down link ports and 10 GE uplink ports.
Technical Specification
| Memory (RAM) | 1 GB |
| Flash | 512 MB in total. To view the available flash memory size, run the display version command. |
| Mean time between failures (MTBF) | 74.7 years |
| Mean time to repair (MTTR) | 1.61 hrs. |
| Availability | > 0.99999 |
| Service port surge protection | Common mode: ± 7 kV |
| Power supply surge protection | Using AC power modules: ± 6 kV in differential mode, ± 6 kV in common mode Using DC power modules: ± 2 kV in differential mode, ± 4 kV in common mode |
| Stack ports | Any 10 or 100 or 1000 BASE-T ports or 1000 BASE-X ports |
| RTC | Supported |
| RPS | Not supported |
| PoE | Not supported |
| Rated voltage range | AC input: 100 V AC to 240 V AC, 50 Hz or 60 Hz High-Voltage DC input: 240 V DC DC input: -48 V DC to -60 V DC |
| Maximum voltage range | AC input: 90 V AC to 264 V AC, 47 Hz to 63 Hz High-Voltage DC input: 190 V DC to 290 V DC DC input: -38.4 V DC to -72 V DC |
| Maximum power consumption (100 % throughput, full speed of fans) | 58 W |
Typical power consumption (30 % of traffic load) Tested according to ATIS standard EEE enabled No PoE power consumption | 41 W |
| Operating temperature | 23 °F to 122 °F (-5 °C to 50 °C) |
| Short-term operating temperature | 23 °F to 131°F (-5 °C to 55 °C) |
| Storage temperature | -40 °F to 158 °F (-40 °C to 70 °C) |
| Noise under normal temperature (27 °C, sound power) | < 58.9 Db (A) |
| Relative humidity | 5 % to 95 %, noncondensing |
| Operating altitude | 0 mi to 3.10 mi (0 m to 5000 m) |
| Certification | EMC certification Safety certification Manufacturing certification |
| Dimensions (Height x Width x Depth) | 1.72 in. x 17.4 in. x 16.5 in. (43.6 mm x 442.0 mm x 420.0 mm) |
