Overview

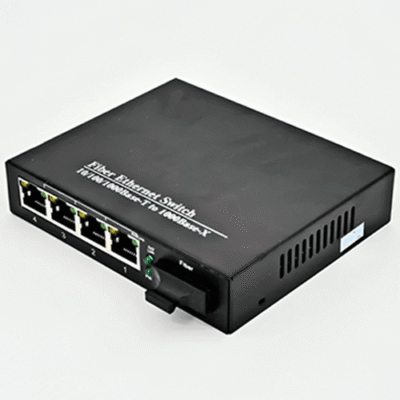

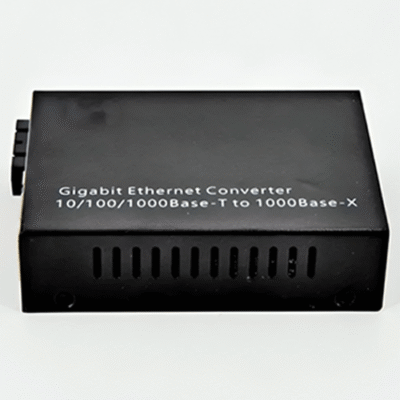

The Inventory Master gigabit fiber converter can convert optical-electric ethernet signals between 10 Mbps or 100 Mbps or 1000 Mbps UTP interface (TX) and 1000 Mbps optical fiber interface (FX). The traditional 10 Mbps or 100 Mbps or 1000 Mbps gigabit Ethernet can be extended to the distance of 62.1 mi (100 km). through optical fiber link. The performance and quality of the products are excellent because of adopting the latest Gigabit IC from the USA and Taiwan. 6 Group LED indicated lights could fully monitor the working conditions of converters. It is easy for users to observe and diagnose the failure of converters. GT Series Gigabit Converters could be used alone, but Converter Card should be inserted to 16 slots RACK supplied by G.T. Crop. which is suitable for the use of Network Centre.
Features
- Auto negotiation function allows UTP ports to
- Auto select 10 Mbps or 100 Mbps or 1000 Mbps
- Full Duplex or Half Duplex
- The UTP port supports the connection of MDI or MDI-X auto crossover
- The max distance up to 0.13 mi or 0.34 mi (224 m or 550 m)
- Single mode Fiber the max distance up to 62.1 mi (100 km)
- Supporting the max 1536-byte Ethernet packet
- Supporting flow control
- Adopting internal power supply
Technical Specifications
| Ports | 1 base x 10 base or 100 base T port, 1 base x 100 base SX or LX port |
| Power standard | Input, AC220 V Output, DC 5 V 1.2 A |
| Wavelength | 850 nm or 1310 nm 1550 nm |
| Transmission speed | 10 Mbps or 100 Mbps or 1000 Mbps |
| Copper Interface | RJ-45 port (Auto MDI or MDIX) Twisted Pair |
| Humidity | FCC Class A, CE Class A |
| Working temperature | 32 ℉ to 122 ℉ (0 °C to +50 °C) |
| Storage temperature | -4 ℉ to 158 ℉ (-20 °C to +70 °C) |
| Humidity | 5 % to 90 % |
| Connector, UTP | RJ-45, 10 Mbps or 100 Mbps or 1000 Mbps, Fiber, SC, 1000 Mbps |
| Max distance | 62.5 um, 0.13 mi (224 m), 50 um, 0.34 mi (550 m), 12.4 mi or 24.8 mi or 37.2 mi or 49.7 mi (20 km or 40 km or 60 km or 80 km) |
| Cable | UTP cable, Cat 5 e or Cat 6 (the max distance up to 0.062 mi (100 m)) |
| Fiber | Single mode, 8.3 μm or 125 μm, 8.7 μm or 125 μm, 9 μm or 125 μm, distance 12.4 mi to 62.1 mi (20 km to 100 km) |
| Power | DC 48 V to DC 5 V |
| MAC address table | 4K |
| Data Buffer | 256 K |
| Dimension | 5.5 in x 4.3 in x 1.1 in (140 mm x 110 mm x 30 mm) |
