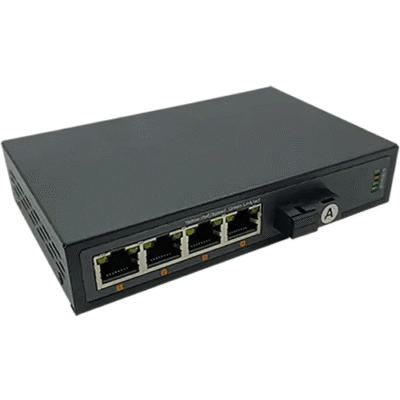

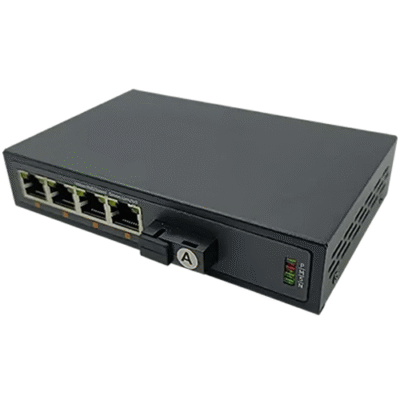

| Fixed Port | 4 x 10 base or 100 base or 1000 base TX + 1 x 1000 base FX |
| Power interface | Poe, DC Connector 0.08 in (2.1 mm),Non-Poe, DC Connector 0.09 in (2.5 mm) |
| Wavelength | 850 nm or 1310 nm or 1550 nm |
| Distance | Cat 5, 0.06 mi (100 m), Multimode, Single or Dual-fiber 1.2 mi (2 Km) |
| Single Mode, Single fiber | 12.4 mi or 24.8 mi or 37.2 mi or 49.7 mi or 62.1 mi (20 km or 40 km or 60 km or 80 km or 100 km) |
| Single Mode, Dual fiber | 12.4 mi or 24.8 mi or 37.2 mi or 49.7 mi or 62.1 mi or 74.5 mi (20 km or 40 km or 60 km or 80 km or 100 km or 120 Km) |
| Ethernet Port | 10 Mbps or 100 Mbps RJ45 Ports, Connection STP or UTP, Cat 5 or Cat 5 e Cooper Cable |
| Multimode, Dual fiber | SC or ST or FC (Diameter 50 μm or 125 μm, 62.5 μm or 125 μm) |
| Single Mode, Single Fiber | SC or ST or FC (Diameter 9 μm or 125 μm) |
| Single Mode, Dual fiber | SC or FC (diameter 9 μm or 125 μm ) |
| Poe Function (Optional) | Poe port, 1 to 4, Poe Protocol, 802.3 af, 802.3 at Poe Pin Assignment, 1 or 2+, 3 or 6- (802.3 af, 802.3 at), Poe Port Power, 802.3 af, 15.4 W 802.3 at, 30 W, Poe Short Protect Support |
| Exchange Attribute | Conversion Method Media conversion, store and forward or straight in MAC Add 1 K, Full duplex state flow control, half-duplex backpressure mode Store and Forward 9.6 us, Straight In 0.9 us ,BER <1 or 1000000000 |
| Switching capacity | 1 G |
| Network Topology | Ring topology, not Support, Star topology, Support,Bus topology, Support, Tree Topology, Support |

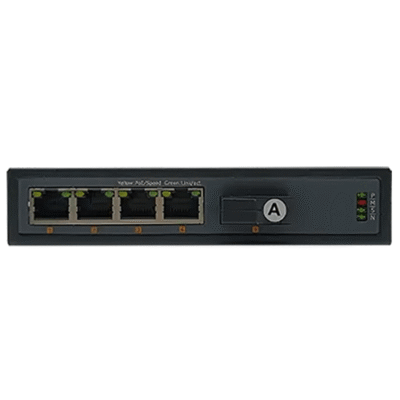

| LED Indicator | P, power Supply M, Poe Type, when the load power over 90 % of the total power the red light is always on and alarm, Non-Poe Type, he chip is read and written abnormally, and the red light is always on, Link or act link status indicator for port 5 N, no function indication, this light is always off |
| Power Supply | Power Input, DC 5 V 2 A, Full Load, < 2.5 W |
| Operating Temperature | -4 ℉ to 158 ℉ (-20 ℃ to 70 ℃) |
| Storage Temperature | -40 ℉ to 158℉ (-40 ℃ to 70 ℃) |
| Storage Humidity | 5 % to 90 % non-condensing |
| Dimension | 5.5 in x 3.4 in x 1.1 in (140 mm x 88 mm x 28 mm) |
| Weight | 1.1 lb (500 g) |
