Overview
The Inventory Master gigabit media converter is composed of 8 Mbps 10 Mbps or 100 Mbps or 1000 Mbps optical ports and 2 Mbps 100 Mbps or 1000 Mbps adaptive network ports. It adopts foreign professional-grade communication chips, with mature and stable technology, strong anti-static ability and low-cost solutions. Ethernet twisted pair electrical signal to an optical fiber bi-directional media conversion, transmission distance of 0.62 mi (1000 m) from a network extending to 74.5 mi (120 km), achieve access to broadband metropolitan area network communications. Our converged fiber switch equipment has the advantages of high speed, high bandwidth, low power consumption, good electromagnetic compatibility and long service life. suitable for small fiber optic Ethernet and light networks with special needs.
Features

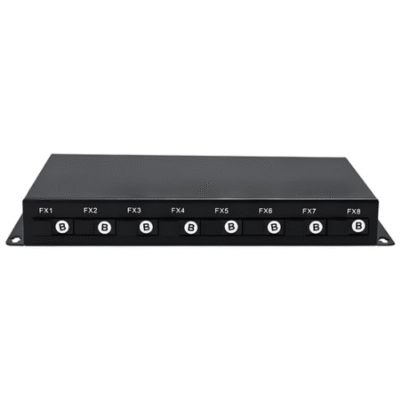

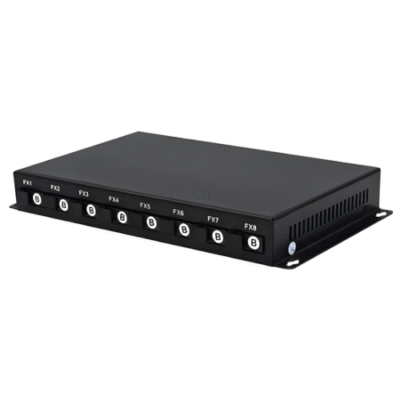

- 8 fiber modules and 2 RJ45 electrical port
- Can adaptive 10 Mbps or 100 Mbps or 1000 Mbps
- Full or half duplex mode
- Straight-through or cross-connect
- Support flow control to prevent broadcast storms
- Support port parallel function (Trunking)
- Support 16K Jumbo packet, Built-in 4 Mb SRAM for packet buffer
- Low power consumption (10 W), low heat generation and good stability
- Lightning protection device is used to effectively
- Reduce damage caused by lightning induction
Technical Specifications
| Wavelength | 1310 nm or 1550 nm |
| Fiber Type | Single Fiber Single Mode |
| Adaptation Standards | IEEE802.3 or u or z or zb, 10 Base T, 100 Base Tx, 1000 Base and 100 Base FX |
| MAC Address Table | Internal 16K MAC Address Entities |
| Frame Memory | 4 MKb sharing |
| Interface Standard | 2 RJ45 ports RJ-45, 10 Mbps or 10 Mbps or 1000 Mbps (adaptive) 8 optical ports,155 Mbps |
| Cable | Twitted pair 5 E or 6 (maximum distance to 320.8 ft (100 m)) |

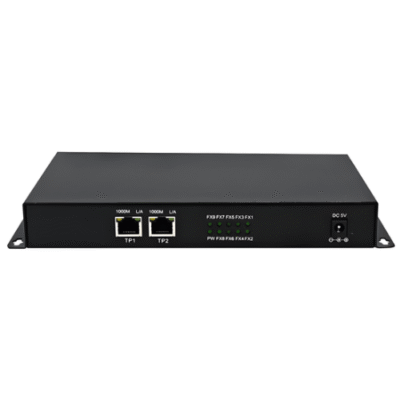

| LED Indicator | PWR, SFP1 link or Act, SFP2 link or Act, SFP3 link or Act, SFP4 link or Act, SFP5 link or Act, SFP6 Link or Act, SFP7 link or Act, SFP8 link or Act, TP Link or Act, TP SPD |
| Power Supply | AC 220 V (100 V to 240 V), 50 Hz to 60 HZ DC 12 V, 1 A and 5 V 3 A |
| Transmission Rate | 100 Mbps |
| Working Temperature | -31 ℉ to 167 ℉ (-35 ℃ to 75 ℃) |
| Working Humidity | 5 % to 90 % |
| Transmission Distance | 12.4 mi (20 km) |
| Power Output | External power supply 5 V 2 A |
| Fiber Interface | SC |
| Product Specifications | Single mode, single fiber |
| Single Package Size | 13.7 in x 27.5 in x 3.1 in (35 cm x 20 cm x 8 cm) |
| Single Gross Weight | 3.3 lb (1.5 kg) |
