Overview

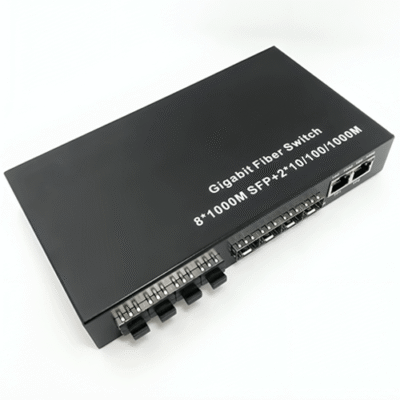

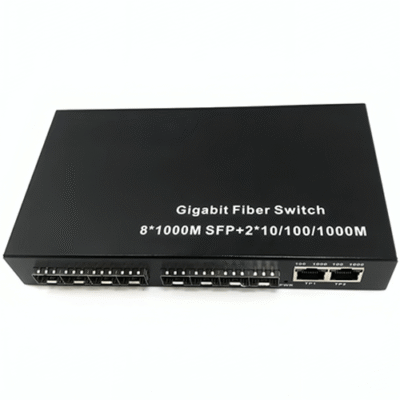

The Inventory Master gigabit network fiber converter provides the power of switching with the ease of use and affordability of traditional shared hubs. Truly Plug-and-Play, This Ethernet Switch automatically learns about the devices on your network and configures itself without complicated setup procedures. Dramatic improvements in performance can easily be seen, with speeds of up to 200 Mbps per port. Since full bandwidth capability is achieved on each individual port, the congestion problems of shared hubs are easily avoided.
Features
- Auto negotiation function allows UTP ports to
- Auto select 10 Mbps or 100 Mbps or 1000 Mbps
- Full Duplex or Half Duplex
- Ideal for Integrating Your 2, 10 or 100 or 1000, UTP Ports
- 8 SFP 1000 Base-FX Provide Dedicated
- Bandwidth in Half or Full-Duplex Modes
- Compatible with All Major Network Operating Systems
- Advanced Store-and-Forward Packet Switching Optimizes Data Transfers
- Full wire-speed layer 2 switch on all ports
- 6 M Buffer Memory
- Internal 1 k MAC address table per port
- Auto address learning
- Auto address aging (default 300 Sec)
- Supports both Full and Half duplex ports
- Flow control capabilities
- Automatic Transmit delay control capabilities
Technical Specifications
| Connector type | LC or SC |
| Fiber type | Multi-mode, Single mode |
| Wavelength | 850 nm, 1310 nm or 1490 nm or 1550 nm |
| Max Distance | 62.5 µm, 0.13 mi (224 m), 50 µm, 0.34 mi (550 m) 12.4 mi (20 Km), 24.8 mi (40 km), 37.2 mi or 49.7 mi (60 km or 80 km) |
| Min TX PWR | -12.0 dBm, -11.0 dBm, -10.0 dBm, -5.0 dBm or -10 dBm, -6.0 dBm or -1 dBm |
| Max TX PWR | -6.0 dBm, -5.0 dBm, -4.0 dBm, 0 dBm, 3 dBm |
| Sensitivity | -19 dBm, -22 dBm, -25 dBm, -26 dBm |
| Link Budget | 7.0 dBm, 11.0 dBm, 12.0 dBm, 20 dBm or 15 dBm, 19 dBm, 25.0 dBm |
| Distance | Dual Fiber MM, 1.2 mi (2 km), Dual Fiber SM, 12.4 mi or 24.8 mi or 37.2 mi or 49.7 mi or 62.1 mi (20 km or 40 km or 60 km or 80 km or 100 km) Single Fiber SM, 12.4 mi or 24.8 mi or 37.2 mi or 49.7 mi (20 km or 40 km or 60 km or 80 km) |
| MAC | 1 K |
| CPU | 150 MHz or above |
| SFP slot data | 1000 Mbps |
| Cable Type | Cat.5 or 6 UTP |
| Switching capacity | 20 G |
| Memory | 16 MB or above |
| Input Voltage Range | 9 V to 15 V or DC |
| Consumption | Max.6 W |
| Operating Temperature | 32 ℉ to 113 ℉ (0 ℃ to 45 ℃) |
| Storage Temperature | -40 ℉ to 158 ℉ (-40 ℃ to 70 ℃) |
| Operating Humidity | 10 % to 90 % RH no condensing |
| Storage Humidity | 5 % to 90 % RH no condensing |
| Access mode | 10 Mbps or 100 Mbps or 1000 Mbps |
| Power Requirement | AC 220 V (100 V to 240 V), 50 Hz to 60 Hz |
| Dimensions | 1.4 in x 5.1 in x 4.3 in (37 mm x 130 mm x 110 mm) |
