Overview

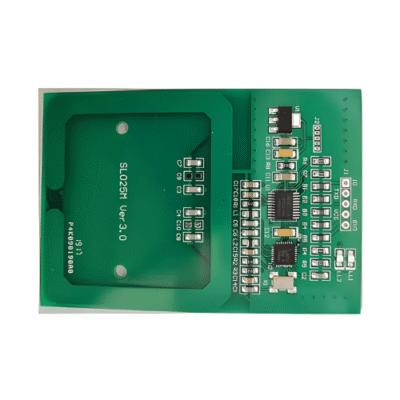

The Inventory Master HF RFID Fast Delivery Reader Module Being developed based on N P’s transponder IC, HF RFID Fast Delivery Reader Module is a MiF read or write module. It supports MF 1 K, MF 4 K, and Ultralight and is applicable for 13.56 MHz. It does auto real-time detecting tag which moves into or out of detective range and reports through one output pin’s logic level. In addition, it integrates all necessary components and antenna into one PCB. The external micro-controller can work with SL025M to read or write Mifare cards by simple serial communication command.
Technical Specifications
| Frequency | 13.56 MHz |
| Protocol | ISO 14443 A |
| Support Chips | MF 1K S 50, MF 1K S 70, MF UltraLight, MF UltraLight C |
| Read/Write Distance | 2.76 in (7 cm) |
| Communication Interface | UART in TTL Level |
| Operating Voltage | 4.5 V to 12 V DC |
| Operating Temperature | -13 oF to 158 oF (-25 oC to 70 oC) |
| Storage Temperature | -40 oF to 185 oF (-40 oC to 85 oC) |
| Dimension | 3.15 in x 2.16 in (80 mm x 55 mm) |
