Overview

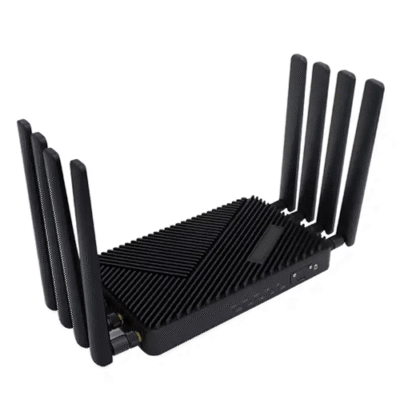

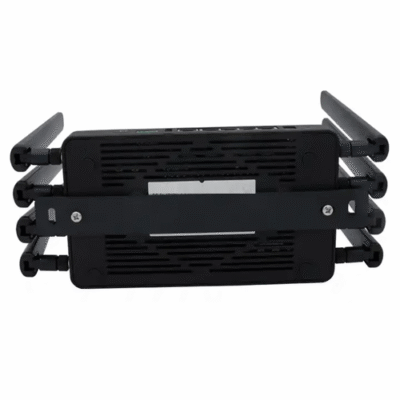

The Inventory Master high-end 5G router uses the latest chip IPQ6000 of Qualcomm, it can use IPQ6010, IPQ6018 and IPQ6028 to replace directly. It makes the data interaction more efficient between machine equipment and the platform. N8 has the large flash memory, high speed memory, and strong data processing capabilities, supports WIFI6 wireless AX1800M, with greater concurrency, and multiple terminals are allowed to access the Internet at the same time, it has a reliable all-round data and network security, which can fully help solve the efficient operation of enterprises.
Features
- Support wide temperature –40 °F to 167 °F (–40 °C to +75 °C) working temperature
- All-aluminum profile high heat dissipation appearance structure
- High-performance Qualcomm quad-core CPU
- High power through the wall king
- The latest WIFI6 technology
- Support multiple access
- Wide voltage 9 V to 35 V input
- Support VPN: PPTP or OPENVPN or L2TP
- Support DTU client or server or Modbus
- Support GPS positioning, SMS text messages
- Support 5 G or 4 G or 3 G or 2 G priority selection
- Support 5 G or 4 G or 3 G or 2 G frequency locking
- Support AP, routing, bridge, repeater, client functions
Technical Specifications
| Max. LAN Data Rate | 1750 Mbps |
| Wi-Fi Supported Frequency | 2.4 G & 5 G |
| 2.4G Wi-Fi Transmission Rate | 600 Mbps |
| Type | Wireless |
| Standards And Protocols | Wi-Fi 802.11 g, Wi-Fi 802.11 b, Wi-Fi 802.11 n, Wi-Fi 802.11 ac, Wi-Fi 802.11 ax |
| Encryption Type | WPA2-PSK, WPA2, WPA3, WPA-PSK, WPA, WEP |
| Products Status | New |
| LAN Ports | 4 |
| Supports WDS | Yes |
| Supports WPS | No |
| Wi-Fi Transmission Standard | WiFi 802.11 ax |
| Wired Transfer Rate | 10 Mbps or 100 Mbps or 1000 Mbps |
| Private Mold | Yes |
| Application | enterprise |
| Function | FireWall, QoS, VPN |
| WAN Ports | 1 x10 Mbps or 100 Mbps or 1000 Mbps |
| 5G Wi-Fi Transmission Rate | 1733 Mbps |
| Protocol | IEEE802.11N or G or B or AC or AX |
| Chipset | IPQ6000 (Quad core 1.5 G) |
| RAM | DDR3: 8 Gbites (Max.) |
| FLASH | nand: 2 Gbits+SPI NOR 16 MB |
| Wireless Rate | 2.4 G: 573 Mbps + 5.8 G: 1201 Mbps |
| Interfaces | 1 WAN,4 LAN,1 x RS485,1 x 2.0USB,1 x TF,1 x SIM,1 x RESET,1 x DC24V Input |
| Dimension | 8.11 in x 4.76 in x 1.22 in (206 mm x 121 mm x 31mm) |
