Technical Specifications
| Frequency | 865 MHz to 868 MHz or 902 MHz to 928 MHz |
| Protocol | EPC Global UHF class1 Gen2 or ISO 18000-6c |
| Reading Distance | 0 ft to 82.0 ft (0 m to 25 m) |
| Writing Distance | 0 ft to 32.8 ft (0 m to 10 m) |
| Communication Interface | Bluetooth, WiFi and 4G; RS232, USB OTG interface |
| Output Dbm | 20 dbm to 30 dbm (Adjustable) |

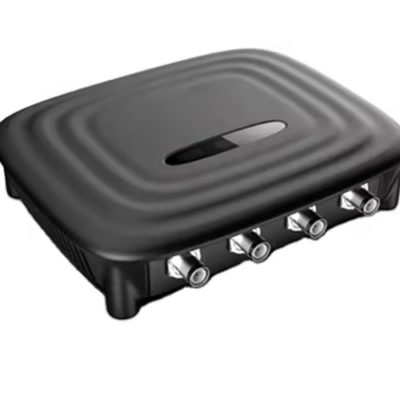

| Antenna Support | 4 external TNC antenna |
| Application Support | C++, C# |
| Applications | Warehouse, Access Control, Assets management |
| Housing Material | Die-cast aluminum alloy |
| Operating System | Android 5.1 or 6.0 or 7.1 |
| CPU Processor | Qualcomm MSM8909 chip platform, 1.8 GHz quad-core A7 processor, clocked at up to 1.8 GHz |
| GPU Graphics Processor | Support 4K, H.2265 hard decoding with Mali-T764 GPU |
| USB Interface | USB 2.0 or higher X 1, USB OTG |
| HDMI | Support video 1 X HDMI interface (1080P) |
| Input Power | DC 12 or 3A |
| Power | 25 W (RF output power 30 dBm) |
| Ambient Temperature Detection | Supported |
| I Or O interface | 4 optocoupler inputs (initial low level), 4 relay outputs (loadable DC 24 V or 2 A） |
| WIFI | Support IEEE 802.11 n/b/g |
| Bluetooth | Support Bluetooth 4.0 |
| GPS | Support GPS + GLONASS + Beidou |
| 4G Internet | 4G: Mobile (TD-LTE); 4G: Unicom (FDD-LTE); 4G: Telecom (FDD-LTE); 4G: Unicom (TD-LTE) |
| 3G Or 2G Internet | 3G: Mobile (TD-SCDMA); 3G: Unicom (WCDMA); 3G: Telecom (CDMA2000); 2G: Mobile & Unicom (GSM) + Telecom (CDMA) |
| RS232 | 1 way communication |
| Internet Connection | 1 way; 10 M or 100 BASE-T Ethernet |
| SIM Card Interface | 1 |
| RF Interface | 4 SMA antenna connectors |
| Online Upgrade | Support remote update of systems and applications |
| Output Power | 20 dBm to 30 dBm ± 1 dBm |
| Output Power Adjustment | 1 dBm step |
| Receiving Sensitivity | <﹣85 dBm |
| Tag Identification Peak Speed | >800 times per s |
| Tag RSSI | Supported |
| Antenna Detector | Supported |
| Power Indicator | Red light, red light on |
| Communication Indicator | Yellow light, blinking constantly during communication |
| Card Reader Indicator | Green light, flash once after reading the card |
| 3G Or 4G Indicator | Blue light, 3G or 4G module working indicator is always on |
| WIFI Indicator | Blue light, WIFI module working indicator is always on |
| Buzzer | Working status sound indication |
| RAM + ROM Memory | LPDDR2 + eMMC 2 GB or 4 GB or 16 GB or 32 GB |
| Built-in Storage SD | Support SD card X 1, up to 128 GB |
| Environment Humidity | < 95% (non-condensing) |
| Operation Temperature | -4 °F to 185 °F (﹣20 ℃ to﹢85 ℃) |
| Storage Temperature | -40 °F to 185 °F (﹣40 ℃ to﹢85 ℃) |
| Physical Dimensions | 8.4 in X 7.4 in X 1.3 in (215 mm × 185 mm × 34 mm) |
| Weight | 3.3 lb (1.5 kg) |
