Overview

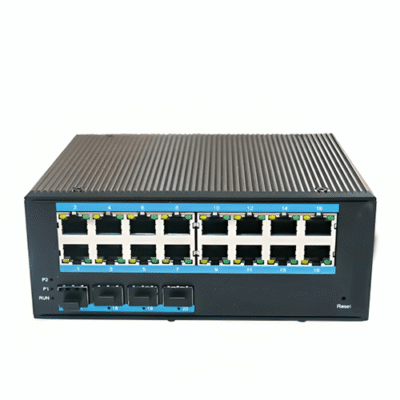

The Inventory Master High Quality Sixteen Port Gigabit Ethernet Switch is industrial-grade gigabit optical fiber transceivers, which adopt a full-industrial-grade design and high protection level, which enhances the reliability and security of industrial networks. To meet transportation, electricity, energy source, outdoor monitoring, and other deployment requirements in harsh environments.
Features
- Fan less metal case for heat dissipation, high temperature resistance
- Redundant power supply design, power supply anti-reverse protection
- Working wide voltage: 12 to 52VDC 48 to 57VDC(POE)
- Port mirroring can analyze and monitor data
- IP40 degree of protection against dust, chips and dirt
- Full-duplex or half-duplex mode, with auto-negotiation capability
- ACL access control enhances network flexibility and security
- Strong compatibility, compatible with various brands in the market
Technical Specifications
| Electrical Signal Port | 16 x 10/100/1000M Base-TX |
| Optical Signal Port | 4 x 1000 Base-X |
| Optical Form | SFP |
| Poe Port | 16 |
| Console | RJ45 |

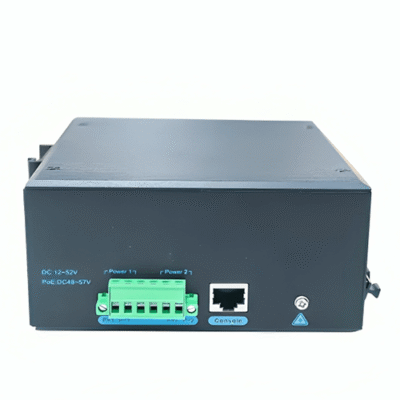

| Power Interface | Phoenix terminal, Dual power supply redundancy |
| LED Indicator | Operation indicator light, interface indicator light, power indicator light |
| Input Voltage | DC 12 V to 52 V，58 V DC 48 V to 57 V (PoE) |
| Machine Power Consumption | < 12 W |
| Installation Method | Rail installation |
| VLAN Quantity | 4096 |
| MAC Address Table | 8K |
| Forwarding Delay | < 10us |
| Polarity Reversal (MDX/MIDX) | Supported |
| Jumbo Frame | 10K Bytes |
| Watchdog Function | Support |
| Working Temperature | -104 °F to 176 °F (-40℃ to +80℃) |
| Storage/Transportation Temperature | -104 °F to 176 °F (-40℃ to +80℃) |
| Relative Humidity | 5% to 95% |
| Heat Dissipation Method | Fan less design, natural heat dissipation |
| Mtbf | 30 years |
| IP Rating | IP40 |
| Surge (Shock) Immunity | IEC 61000-4-5 Level X (6KV/6KV) (8/20us) |
| Radiated Immunity | IEC 61000-4-3 Level 3 (10V/m) |
| Electrostatic Discharge Immunity | IEC 61000-4-2 Level 4 (8K/15K) |
| Free Fall | 0.01 in (0.5 m) |
| Dimensions | 5.39 in x 6.53 in x 2.69 in (137mm x 166mm x 68.5mm) |
| Weight About | 2.38 lb (1.08 kg) |
