Overview

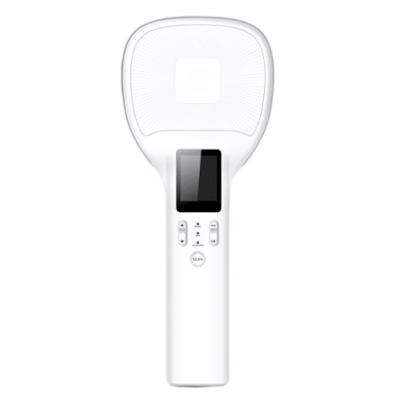

The Inventory Master iOS R2 Long Range Bluetooth UHF RFID Reader is a handheld bluetooth reader with superior RFID performance. It enables a reading distance of 101.7 ft (31 m) outdoors and can store up to 50,000 tags. It supports optional barcode scanning and allows flexible connectivity with any smart device via Bluetooth for data transmission with ease. The RFID reader can complete tasks in inventory management, asset management, etc.
Technical Specification
| Frequency | 902 MHz to 928 MHz |
| Protocol | EPC C1 GEN2 / ISO18000-6C |
| Communication Interface | USB Type-C |
| Development Language | Java or Objective-C |
| Development Tools | Android Studio or Xcode |
| Buzzer | Support |
| Interfaces | Micro-USB |
| Indicator LED | Power, Work, Bluetooth |
| Product Material | Plastic |
| Color | White |
| Display | 1.77 in (4.4 cm) |
| Battery Capacity | 5200 mAh |
| Reading Rate | ≤ 900 tag per s |
| Antenna | Circular Polarized Antenna (4 dBic) |
| Power | 1 W |
| Max Read Range | 98.4 ft (30 m) |
| MCU | Cortex-M3 72 MHz |
| Storage | 50000 tags |
| SDK | Android or iOS |
| BT | BT 4.0 |
| Tumble Specification | 1.64 ft (1000 m x 0.5 m) falls at room temperature |
| ESD | ±15 kv air discharge |
| Drop Specification | Multiple 4.9 ft (1.5 m) |
| Working Temperature | 4 °F to 122 °F (-20 ℃ to 50 ℃) |
| Storage Temperature | -40°F to 158°F (-40 ℃ to 70 ℃) |
| Humidity | 5% RH to 95% RH (non-condensing) |
| Dimensions | 11.1 in X 4.63 in X 1.26 in (282 mm X 11 7.5 mm X 32 mm) |
| Weight | 11.7 oz (334 g) |
