Overview

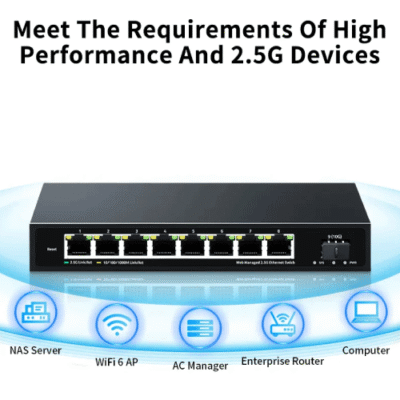

The Inventory Master light network management ethernet switch adopts the network chip solution of high quality and high speed. The product is designed to be fan-free and quiet, which completely solves the problem of loud noise from small switches deployed in the office environment. The switch has 8 x 100 / 1000 / 2500 M RJ45 ports and 1 x 10 G SFP+ port, providing seamless connection to 100 / 1000 / 2500 M Ethernet for easy management and maintenance. The switch can be widely used in security network video surveillance, hotels, campuses, and network engineering of small and medium-sized enterprises.
Features
- 8 x 2.5 G RJ45 port + 1 x 10 G SFP+ ports
- Ethernet port support 10 / 100 / 1000 M / 2.5 G adaptive
- Supports automatic port rollover (Auto MDI / MDIX)
- Panel indicator lights monitor working status and help failure analysis
- Flow control mode
- Full duplex adopts IEEE802.3x standard
- Half duplex adopts Back pressure standard
Technical Specifications
| Power | DC 2.1 |
| Ethernet | 8 x 100 / 1000 / 2500 M RJ45 ports1 x 10 G SFP+ ports |
| Bandwidth | 60 Gbps |
| Packet forwarding rate | 44.64 Mpps |
| Package cache | 8 Mbit |
| VLAN | 4096 |
| MAC address table | 4K |
| Jumbo frame | 16 Kbytes |
| Forwarding mode | Store and forward |
| MTBF | 100000 Hour |
| Network protocol | IEEE802.3 (Ethernet)IEEE802.3u (Fast Ethernet)IEEE802.3ab (Gigabit Ethernet)IEEE 802.3bz (5G Ethernet)IEEE 802.3z (Gigabit Ethernet)IEEE 802.3ae (10G Ethernet)IEEE802.3x (Flow control) |
| Industry standard | EMI: FCC Part 15 CISPR (EN55032) class AEMS: EN61000-4-2 (ESD), EN61000-4-5(Surge) |
| Network medium | 10 Base-T: Cat3, 4, 5 or above UTP / STP ((≤ 3937.01 in (≤ (100 m))100 Base-TX: Cat5 or higher UTP / STP ((≤ 3937.01 in ≤ (100 m))1000 Base-TX: Cat5 or higher UTP / STP ((≤ 3937.01 in ≤ (100 m)) |
| SFP medium | Multimode optical fiber: 50 / 125, 62.5 / 125, 100 / 140 umSingle-mode optical fiber: 8 / 125, 8.7 / 125, 9 / 125, 10 / 125 um |
| Safety certification | CE, FCC, RoHS |
| Working environment | Operating temperature: 14 °F to 122 °F (- 10 °C to 50 °C)Storage temperature: -40 °F to 158 °F (- 40 °C to 70 °C)Operating humidity: 10 % to 90 %, no condensationStorage humidity: 5 % to 95 %, no condensation |
| PWR (Power indicator) | On: Powered onOff: Powered off |
| SYS | Flashing: System startupLighting: System Running |
| 1 to 8 Port | Green On: 2.5 G Link connect normalYellow On: 10 / 100 / 1000 M Link connect normalOff: Link offFlashing: data transmitting |
| 9 Port Green Light | On: 10 G Link connect normalOff: Link offFlashing: data transmitting |
| Reset | Long press for 6 seconds to Factory reset |
| Operating voltage | Adapter input voltage: 100 V AC to 240 V ACSwitch input voltage: DC 12 V 2 A |
| Power | Maximum 24 W |
| Port | Port SwitchPort SpeedPort DuplexPort Flow ControlJumbo, up to 16356 bytes |
| Link Aggregation | Static GroupUp to 2 groupsMax. 4 members per group |
| Storm Control | BroadcastUnknown MulticastUnknown Unicast |
| Port Security | MAC Address Constraints |
| VLAN | Access/Trunk/HybridCongurable VID from 1 to 4094Max. 31 static VLAN groups |
| MAC Address | Dynamic AddressStatic Address |
| Spinning Tree Protocol | STP / RSTP / MSTPEdge Port |
| Multicast | IGMP SnoopingIGMP V1 / V2Router PortStatic IGMP Join |
| QoS | Traffic classification based, Strict priority and WRRPort PrioritySupports up to 8 queues per port |

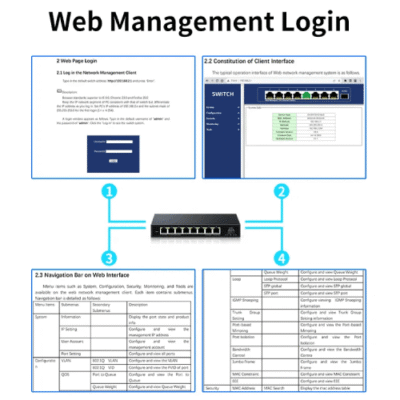

| Access Protocol | HTTP |
| Weight | 1.08 lb (490 g) |
| Structural dimension | 7.4 in x 4 in x 1.1 in (190 mm x 100 mm x 28 mm) |
