Features

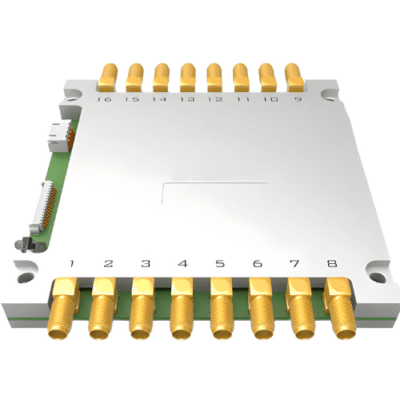

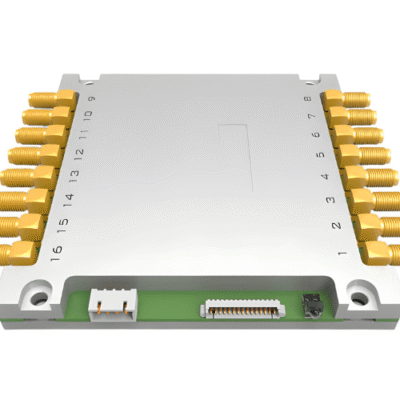

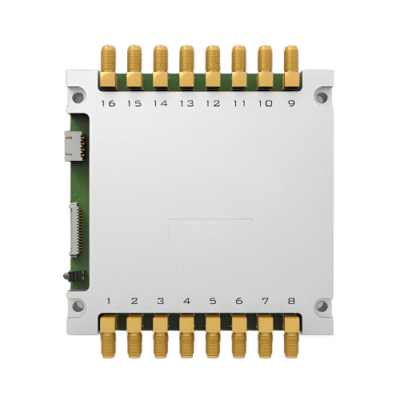

- 16 ports MMCX connector
- Impinj R2000 chipset, support EPC global Gen2 (ISO 18000-6C)
- High Performance of anti-collision recognition algorithm15PIN SFW12R-1STE1LF
- Real-time Monitoring of On-board temperature
- Aluminum housing, helpful in heat dissipation
- Smart size and fully packaged
- Suitable module of integration with handheld UHF PDA or tablet
- Certificate: FCC, CE, RoHS
Technical Specifications
| RFID Characteristics Air Protocols | EPC Class 1 Gen 2 (ISO 18000-6C) |
| Frequency | USA: 902 MHz to 928 MHz FCC (NA, SA) EU: 865 MHz to 868 MHz (ETSI) CN: 920 MHz to 925 MHz (CMIIT) Other customizable: OPEN 840 MHz to 960 MHz |
| Antenna Ports | 16 ports 50 Ω MMCX Connector |
| Output Power | 5 dBm to 30 dBm (±1 dBm) adjustable |
| Work Mode | Fixed or hop frequency optional |
| Connector Interface | 15 pin SFW12R-1STE1LF connector (Power supply, Communication, GPIO) |
| Tag RSSI | Support |
| Antenna Detector | Support |
| Temperature Detector | Support |
| RFID Performance Max Read Rate | ≥700 tags per s |
| Max Tag Read Distance | ≥ 32.8 ft (10 m), 8 dBi antenna |
| Certificates | FCC 47 CFR, Part 15; CE; RoHS CE, ETSI EN 302 208 V3.1.1, RED 2014/53/EU RoHS compliant, 2011/65/EU, 2015/863/EU |
| Application Interface Host API | C, C#/.NET, Java |
| Communication Interface Communications | UART serial port (RS232), Baud rate 9600 bps to 115200 bps |
| GPIO (Optional) | Optional, 2 inputs (DC 0 V to 3.3 V), 2 Outputs (DC 0 V to 3.3 V) |
| Power Supply Input Voltage | 3.6 to 5.0 VDC+/-5 % |
| Power Consumption In RF Output Mode | 5.5 W (Peak Value), 0.35 W (Idle) |
| Power Consumption In Standby | 0.35 W |
| Physical Characteristics Dimensions | 9.6 in x 6.1 in x 1.3 in (245 mm x 155 mm x 34 mm) |
| Net weight | 0.04 oz (1.2 g) |
