Overview

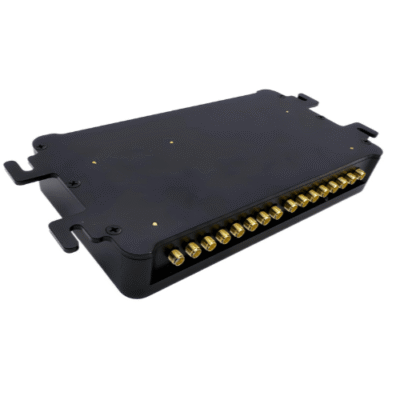

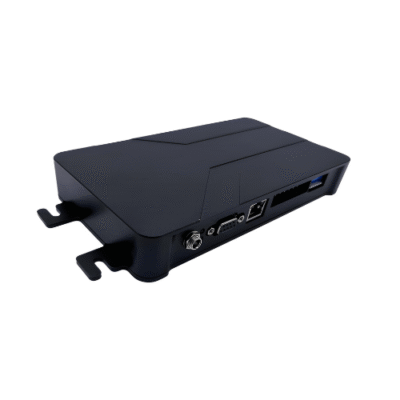

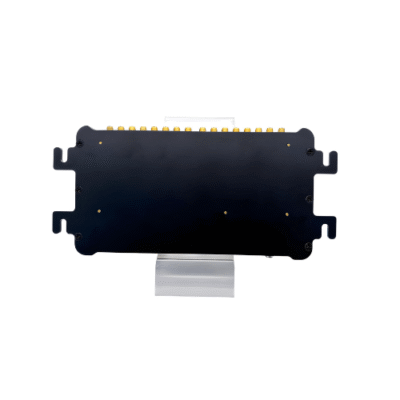

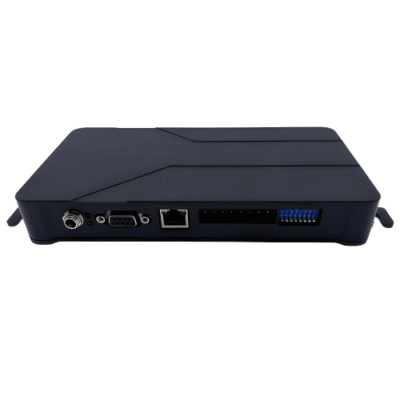

The Inventory Master Long Read Range 16 Ports UHF RFID Fixed Reader For Warehouse Management that fully supports mainstream UHF RFID air interface protocols such as EPC C1G2 ISO18000-6B/C, GB/T29768-2013 (optional), and the working frequency band supports the national standard dual-band 920 MHz to 925 MHz, 840 MHz to 845 MHz and FCC, 902 MHz to 928 MHz and ETSI, 865 MHz to 868 MHz, output power 0 dBm to 33 dBm optional, with long identification distance, fast speed, strong multi-tag identification ability, strong anti-interference ability, and high protection performance and ease of installation and use. Provides Ethernet, RS-232, RS-485, and GPI/O interfaces, with high-speed data transmission and stable performance. In a multi-tag environment, maintain extremely high receiving sensitivity and low missed reading rate. The reader has the advantages of high protection level, high-cost performance, small size and easy installation, and can be widely used in assets. Management, personnel management, campus smart communication, vehicle gates and other fields
Technical Specifications
| Antenna Port | 16-way SMA antenna interface |
| Communication Interface | RS232, RS485, RJ45, Weigand |
| Working Frequency | 928 MHz or 865 MHz to 868 MHz |
| Port Output Power | 33 dBm ±1 dB (MAX) |
| Air Interface Protocol | ISO 18000-6C/E1G2 support GB/T29768, GJB7377.1 |
| Network Port Communication Rate | 10M or 100M Adaptive |
| Working Status Display Mode | LED indicator light, buzzer |
| Card Reading Rate | 400 times 902 per s |
| Multi-Label Processing Capability | 600 pictures per 3 s |
| Maximum Receiving Sensitivity | -78 dbm |
| Gpio | 2 optocoupler inputs, 2 relay outputs |
| Operating Voltage | DC 9 V to 24 V |
| Technical Support | Provide API development kit and C# and Java |
| RS-232 Communication Rate | Baud rate supports 9600, 19200, 115200 (default), 460800 optional |
| RS232 Interface | Baud rate supports 9600, 19200, 115200 (default), 460800 optional |
| Size | 9.4 in x 4.7 in x 1.6 in (240 mm x 120 mm x 42 mm) |
| Weight | 2.2 lb (1 kg) |
