Overview

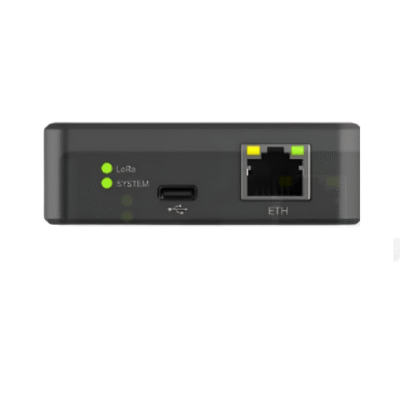

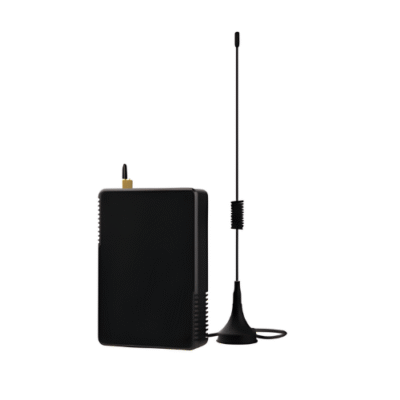

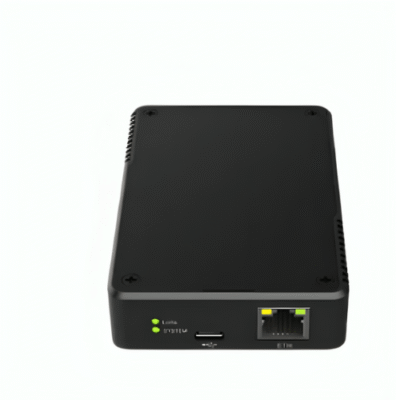

The Inventory Master lora hardware is a high-performance solution designed to offer seamless and reliable connectivity for industrial applications. With its industrial-grade design, Listen Before Talk (LBT) capability, support for gateway fleets, embedded network server, and compatibility with global LoRaWAN frequency plans, this gateway is the ideal choice for businesses looking to enhance their connectivity in industrial environments. It ensures robust and interference-free data transmission, making it an asset for industries seeking to implement LoRaWAN technology.
Features
- Industrial-Grade Design
- Listen Before Talk (LBT)
- 8 Channels
- Quad-Core CPU
- Semtech SX1302 LoRa Chip
- Global LoRaWAN Frequency Plans
- Gateway Fleet
- Free Embedded Network Server
- Multiple Backhaul Connectivity
- Massive IoT Connectivity
- Compatibility with Multiple Network Servers
- Mile sight IoT Cloud Integration
Technical Specification
| CPU | Quad-core 1.3 GHz, 64-bit ARM Cortex-A35 |
| Memory | 512 MB DDR3 RAM |
| Flash | 8 GB eMMC |
| Extendable Storage | 1 Micro SD Slot |
| Antenna Connector | 1 50 Ω SMA Connector |
| Channel | 8 (Half / Full duplex) |
| Frequency Band | CN 470 / IN 865 / EU 868 / RU 864 / US 915 / AU 915 / KR 920 / AS 923 |
| Sensitivity | -140 dBm Sensitivity @292 bps |
| Output Power | 27 dBm Max |
| Protocol | V1.0 Class A / Class B / Class C and V 1.0.2 Class A / Class B / Class C |
| LBT | Support |
| Port | 1 × R J45 (PoE PD supported) |
| Physical Layer | 10 / 100 Base T (IEEE 802.3) |
| Data Rate | 10 / 100 Mbps (Autosensing) |
| Interface | Auto MDI/MDIX |
| Mode | Full or Half Duplex (Autosensing) |
| Antenna | Internal Antenna |
| Standards | IEEE 802.11 b/g/n, 2.4 GHz |
| Mode | AP or Client mode |
| Security | WPA/WPA2 authentication, WEP / TKIP / AES encryption |
| Tx Power | Various power levels specified for different data rates |
| Antenna | Internal Antenna |
| SIM Slot | 1 (Mini SIM 2FF) |
| Reset Button | 1 RST (Internal) |
| Console Port | 1 Type C |
| LED Indicators | 1 SYSTEM, 1 LoRa |
| Network Protocols | PPPoE, SNMP v1/v2c/v3, TCP, UDP, DHCP, DDNS, HTTP, HTTPS, DNS, ARP, SNTP, Telnet, SSH, MQTT, etc. |
| VPN Tunnel | Open VPN / IPsec / PPTP/ L2TP / GRE / DMVPN |
| Firewall | ACL / DMZ / Port Mapping / MAC Binding / URL Filter |
| Management | Web, CLI, SMS, On-demand dial up, Device Hub, Mile sight IoT Cloud |
| Reliability | WAN Failover |
| App | Python SDK, Node-RED |
| Power Input | 1. 1 × 802.3 af PoE Input |
| Ingress Protection | IP 30 |
| Housing | Metal |
| Operating Temperature | -4 °F to 140 °F (-20 °C to 60 °C) |
| Storage Temperature | -40 °F to 185 °F (-40 °C to 85 °C) |
| Dimensions | 4.33 in x 2.95 in x 0.94 in (110 mm x 75mm x 24 mm) |
| Weight | 0.44 lb (200 g) |
