Overview

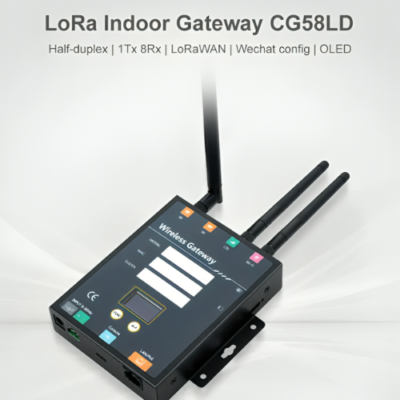

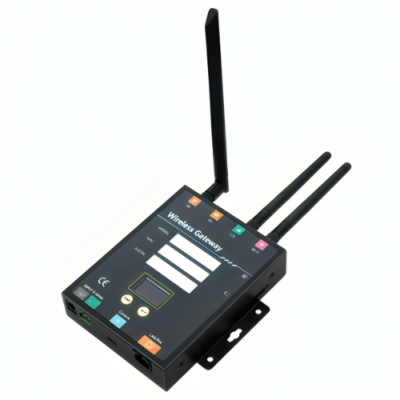

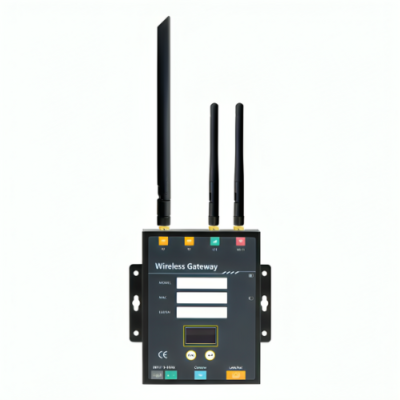

The Inventory Master lora hardware features a self-developed processor, strong data processing ability, and reliable operation. It utilizes the WIFI Ethernet dual-mode processor AC32WL for enhanced connectivity. Additionally, it incorporates the new generation LoRa chip CG58LD, offering advanced capabilities for various applications.
Features

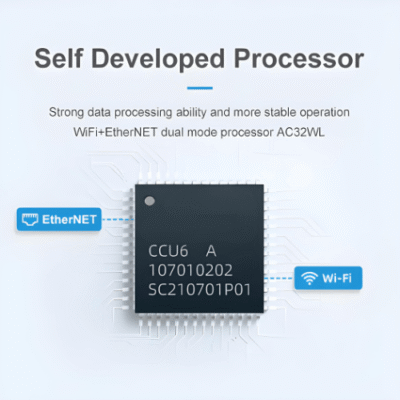

- Self-Developed Processor
- Strong Data Processing Ability
- WIFI Ethernet Dual-Mode Processor
- New Generation LoRa Chip
- Access to 2000 + Nodes
- 8 Uplink Channels, 1 Downlink Channel
- Semtech SX 1302 for Deep Penetration

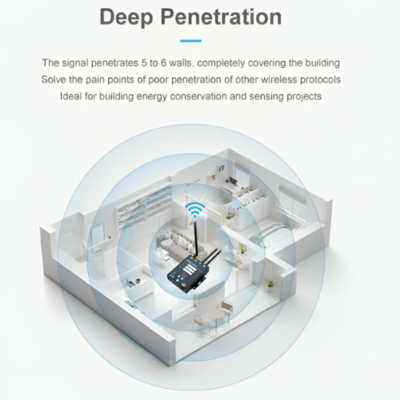

- Signal Penetration Through Walls
- Long Transmission Distances (2 km+ in urban areas, 8 km+ in suburban areas)

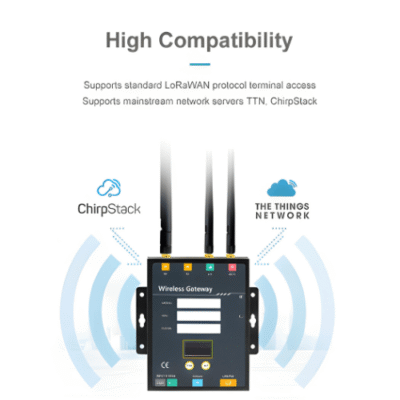

- High Compatibility
- Open Interface
- Network Diagnostics
Technical Specification
| LoRaWAN Protocol | Class A/Class B/Class C |
| Backhaul | Ethernet |
| Processor | Wi-Fi Ethernet |
| Frequency Bands | EU 433 / CN 490 / IN 865 / EU 868 / US 915 / AS 923 MHz |
| Communication Distance | 8 km |
| Interfaces | MQTT, HTTP, HTTPS |
| Power Supply Interface | 9 V DC to 36 V DC (typical: 12 Vdc) |
| PoE Power Supply | 38 V DC to 57 V DC (typical: 48 Vdc) |
| Average Operating Power Consumption | 1 W |
| Spreading Factor | SF7 to SF12 |
| Frequency Band | 433 MHz / 470 MHz / 868 MHz / 915 MHz / 923 MHz |
| Transmit Power | +30 dBm max |
| Receiving Sensitivity | -135 dBm @ S F10 @ BW 125 KHz |
| Routing Channels | 8 Rx, 1 Tx |
