Overview

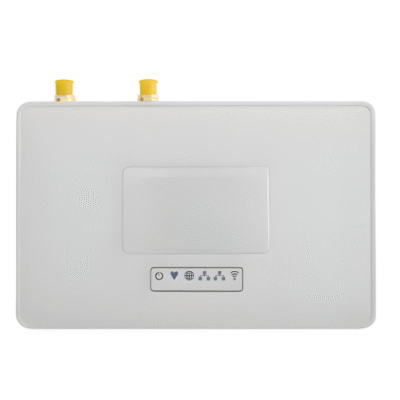

The Inventory Master lora hardware is an open source LoRaWAN Pico Gateway. It lets you bridge LoRa wireless network to an IP network via Wi-Fi, Ethernet, Or 3G/4G cellular via optional LTE module. The LoRa wireless allows users to send data and reach extremely long ranges at low data-rates. It has an optional built-in LoRaWAN server. System integrators can use it to integrate with their existing IoT Service without setting up their own LoRaWAN server or use 3rd party LoRaWAN service.
Features
- Open Source OpenWrt system
- Management via Web GUI, SSH over LAN or Wi-Fi
- Internet connectivity options through LAN, Wi-Fi, or optional LTE module (3 G / 4 G)
- Emulation of 49x LoRa demodulators
- LoRaWAN Gateway functionality
- 10 programmable parallel demodulation paths
Technical Specification
| LoRa Spec | SX 1302 + 2 SX 1250 |
| RJ45 Ports | 10 M / 100 M 2 R J45 Ports |
| Wi-Fi | 2.4 G Wi-Fi (802.11 bgn) |
| USB Port | USB host port |
| Mini-PCIe Interface | Mini-PCIe Interface |
| Power Input | 12 V, 2 A |
| LTE Module | Quectel EC 25 LTE module |
| Micro SIM Slot | Yes |
| Internal 4G Antenna | Yes |
| External 4G Sticker Antenna | Yes |
| Data Rates | Up to 100 Mbps downlink and 50 Mbps uplink data rates |
| Worldwide Coverage | LTE, UMTS / HSPA+, GSM / GPRS / EDGE |
| MIMO Technology | Yes (for data rate and link reliability) |
| Color | White |
| Weight | 1.32 lb (600 g) |
| Usage | Transfer Data + Power |
