Overview

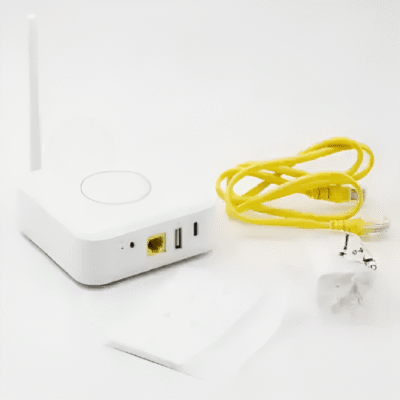

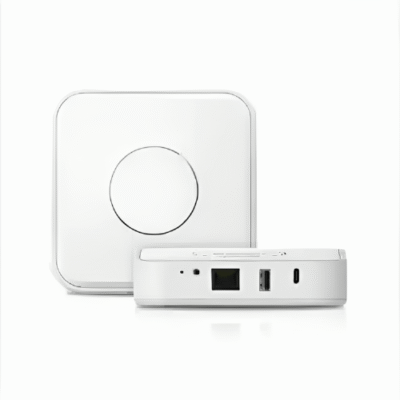

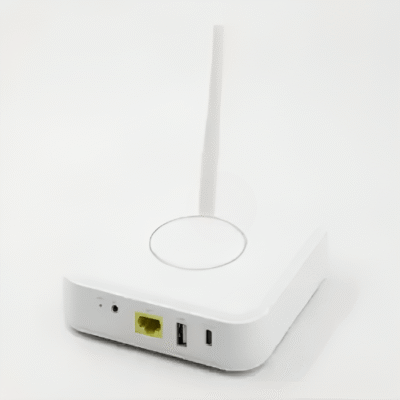

The Inventory Master LoRa indoor long range gateway is an 8-channel indoor LoRaWAN Gateway, a reliable and efficient option for IoT device connectivity. It uses the SX1302 LoRa and secure crypto chip and can cover large areas with its line of sight range of up to 10 km. It also supports LTE functionality, allowing deployment in remote or low-connectivity areas. Overall, the HKT ID-100 can provide connectivity to over 1000 nodes and is an excellent choice for those seeking a robust and dependable IoT gateway.
Features
- Support 5 V / 3 A power supply
- Based on the LoRaWAN Concentrator Engine
- TX power up to 27 dBm
- Support Wi-Fi 2.4 G/ 5 G
- IEEE 802.11 b/g/n/ac
- Support BLE 5.0
Technical Specifications
| CPU | Quad-core Cortex A53 |
| System | Linux |
| RAM | 2 GB |
| EMMC | 32 GB |
| SD card | Up to 2 TB |
| Power Supply | USB Type-C 5 V / 3 A |
| Switch | On/Off power |
| Network Interface | RJ 45 |
| Wireless protocol | Zigbee, BLE ,WiFi, LoRaWAN |
| Installation method | Flat, Ceiling, DIN |
| Hardware encryption | ECC 608 |
| Operating Temperature | 14 °F to 149 °F (-10 ℃ to 65 ℃) |
| Operating humidity | 10% RH to 90% RH |
| IP rate | IP 22 |
| Cooling | Heat dissipation silicone/aluminum |
| Current | 500 mA at 5 V |
