Overview

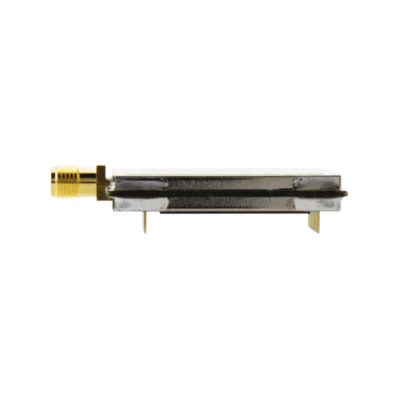

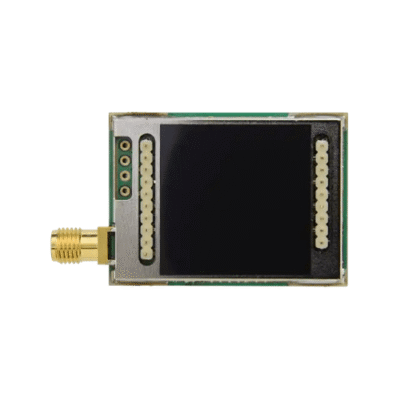

The Inventory Master LoRa transceiver module is a compact and user-friendly embedded radio modem operating in the 434 MHz ISM band. Leveraging LoRa® technology, it achieves extensive communication range with low power consumption, though at a bit lower rate. With exceptional sensitivity, it can penetrate previously challenging RF environments.
Technical Specification
| Standard | EN 300 220 |
| Emission type | F1D |
| RF Output Power | <10 mW Nominal, Contact (50 Ω), SMA |
| Communication method | Simplex or half duplex |
| RE Bit Rate | 15 bps to 245 bps (LoRa® mode) 4,800 bps (FSK mode) |
| Frequency range | 433.075 MHz to 434.7750 MHz |
| Number of Channels | 137 (Channel step 12.5 kHz) |
| Receiver Sensitivity | < -133 dBm (LoRa mode 128 chip) < -115 dB, (FSK mode) |
| Operating voltage | 3.3 V to 5.5 V x 3.5 V to 5.0 V recommended |
| Consumption current | 29 mA typ. (TX) 17 mA typ. (RX) |
| Modulation | 2-FSK or LoRa x Selectable using command |
| Number of I/O | 8 |
| Communication range | FSK: 23622.05 in (600 m) LOS / LoRa: a few km LOS |
| External dimensions (W x D x H) | 1.57 in x 1.14 in x 0.24 in (40 mm x 29 mm x 6.2 mm) |
