Overview

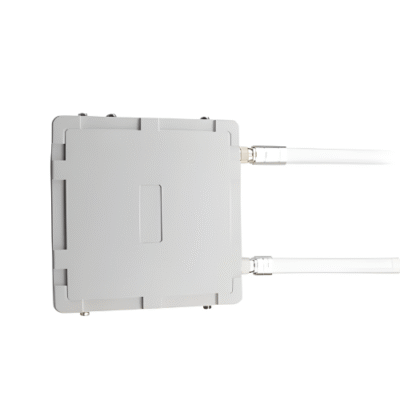

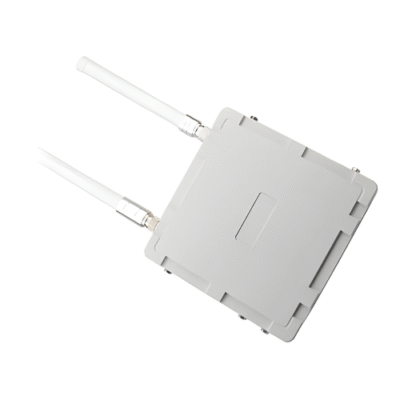

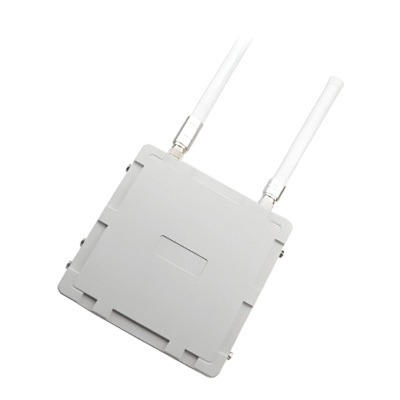

The Inventory Master LoRa WAN Ethernet converter outdoor gateway is based on the Low Power Wide Area Network LoRa WAN protocol, which can connect to standard LoRa WAN terminals and conduct bidirectional communication. The gateway connects the gateway device to the NS (Network Server) via standard Ethernet, supporting network and firewall functions. At the same time, it supports 4G, LTE, GPS, WiFi and other communication protocols to realize data upload. Support the expansion of other protocols such as Zigbee and BT by reserving standard card slots.
Features
- Flexible configuration with up to 8 RX 2 TX LoRa channels
- POE support (IEEE 802.3 af Class 4, 48 V)
- Uplink backup via Ethernet, WiFi, or LTE
- Open WRT software with LoRa WAN support and web configuration
- Built in heat dissipating radiator for LoRa concentrator
- Access to private or public LoRa web servers (TTN)
- 5 hrs to hrs backup battery in normal scenarios
- IP 67 protection level
Technical Specifications
| Processor | Mt 7628, DDR 2 RAM, 128 MB |
| Frequency | 2.400 GHz to 2.4835 GHz, 802.11, b, g, n |
| RX Sensitivity | -142 dBm Min to -95 dBm Min |
| TX Power | 27 dBm Max to 20 dBm max |
| Operating Channel | 2.4 GHz, SX 1301 Mini PCIE Card 8 lanes (up to two can be connected, 8 lanes optional) |
| LoRa Function | EU 433, CN 470, EU 868, US 915, AS 923, AU 915, KR 920, IN 865 |
| Power Supply | POE (IEEE 802.3 af, at Compliant), 42 V to 57 V DC |
| Power Consumption | 12 W (type) |
| ETH | RJ 45, (10 M to 100M) |
| Antenna | 5 N Type Connector |
| Protection Class | IP 67 |
| Installation Method | Pole or wall mount |
| Operating Temperature | -22 ºF to 149 ºF (-30 ℃ to 65 ℃) |
| Size | 8.66 in x 8.66 in x 4.09 in (220 mm x 220 mm x 104 mm) |
| Weight | 6.94 lb (3.15 kg) |
