Overview

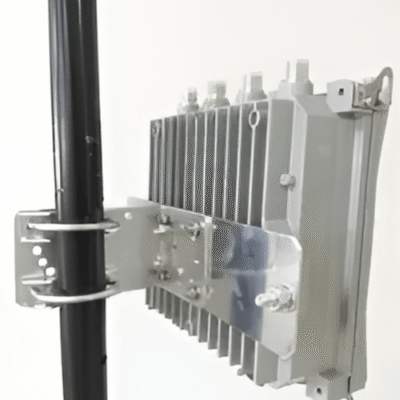

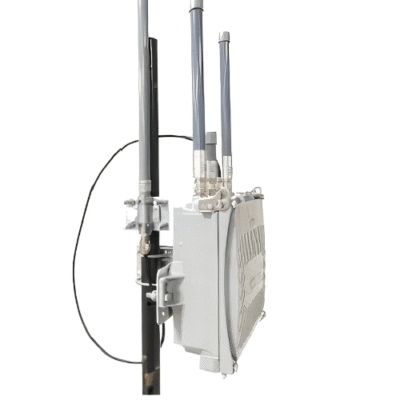

The Inventory Master LoRa WAN outdoor gateway station is a PD device that conforms to the IEEE 802.3 af a at standard, supporting PoE power supply and external DC power supply mode. It can connect to the network server through Ethernet cable and support 4G wireless connection network server. It supports Wi-Fi wireless function and supports external devices to be configured through the Wi-Fi access gateway. At the same time, the built-in GPS module of the gateway can provide accurate positioning function, which is convenient for users to manage the location information of the terminal device.
Features
- LoRa WAN half-duplex operation mode
- Up-link include 8 multi-SF LoRa channel, 1 single-SF LoRa channel, and 1 GFSK channel
- Output power achieve to 27 dBm max, receiver sensitivity is up to -141 dBm @ 300 bps
- Support LoRa WAN Class A, B, C mode
- Support PoE IEEE 802.3 a, f, at
- Support 10 M, 100 M Ethernet connection
- GPRS, 3G, 4G connection, switch automatically
- Supply with 100 m cable via PoE
- High reliability industrial device, IP 66 device
- Easy to setup LP WAN network outdoor
Technical Specifications
| Core | ARM Cortex A 53 |
| Basic Frequency | 1.2 GHz |
| RAM | 1 G bytes |
| Flash | 4 G bytes eMMC |
| Wired Network | Ethernet 10 M to 100 Mbps |
| Mobile Cellular | GSM to 3G, 4G Wireless connection |
| Lora WAN Range | Long Range Wireless Communication |
| Power supply input | PoE, 48 Input, IEEE 802.3 a, f, at |
| Average Power Consumption | 5 W |
| Lora Output Power | Max 27 dBm, type. 14 dBm |
| Lora Sensitivity | -141 dBm to SF12 BW, 125 kHz |
| Mobile Cellular 4G Antenna | Connect gateway with internet |
| Lora WAN Antenna | Lora WAN transceiver, IOT data collection |
| Micro SIM Card Slot | Support Micro SIM Card |
| USB | USB bootloader |
| UART | UART Terminal for debugging |
| Operational Temperature Range | -40 °F to 167 °F (-40 °C to 75 °C) |
| Storage Temperature Range | -40 °F to 185 °F (-40 °C to 85 ℃) |
| Dimensions | 5.7 in x 3.7 in x 1.6 in (145 mm x 95 mm x 40 mm) |
| Weight | 1.6 Ib (715 g) |
