Overview

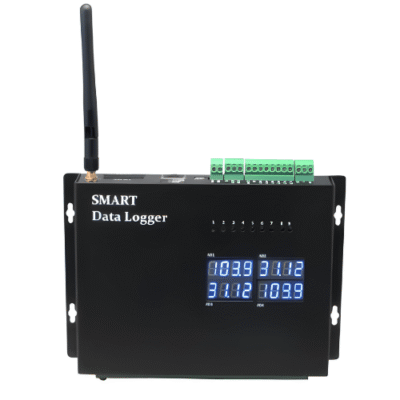

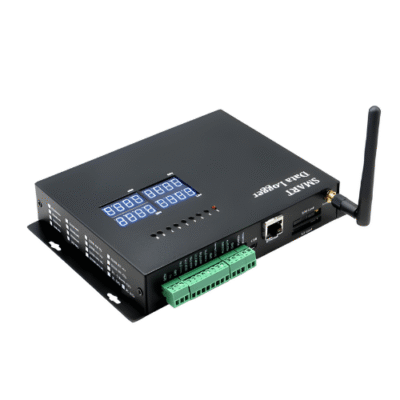

The Inventory Master LoRa WAN smart data logger is a temperature humidity data Logger that’s uploads sensors data, temperature, humidity via GPRS, SMS, Ethernet. It is a GPRS Ethernet Temperature and Humidity Data Logger programmable I to O. It is a built-in UPS feature providing user alert of AC power loss. During the Power Loss, operation is backed up by internal rechargeable battery.
Features
- Real time and Ethernet data upload
- Integrated 16-bit MCU & Ethernet Module
- Programmable data input type and alert hi to low
- Programmable Data Upload Interval and Logging Interval
- Easy setup via USB port by PC software
- Remote Setup by Ethernet
- Support domain name or fixed UDP to TCP protocol data transmission
- Flexible AC to DC power with internal battery backup
Technical Specifications
| Multipoint Temperature | 4 x temperature sensor |
| Sensor’s max | 2 Temperature Sensors |
| Data | 4 MB memory logs |
| Multipoint Temperature | 4 x temperature sensor |
| Operation Rating | 80 mA (data transmission) |
| Operating Voltage | 2.6 V to 3.6 V DC |
| Humidity Range | 0 % RH to 100 % RH |
| Power | Electronic |
| Analog Channel | 4 mA to 20 mA, 0 V to 5 V DC |
| Temperature Range | -67 °F to 257 °F (-55°C to 125 °C) |
| Dimensions | 5.1 in x 6.7 in x 1.2 in (13 cm x 17 cm x 3 cm) |
