Overview

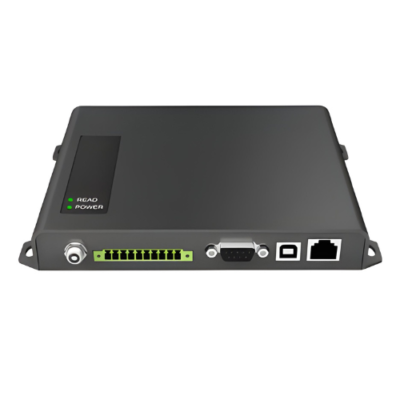

The Inventory Master Multi Port Fixed UHF RFID Reader Long Distance RFID Reader Impinj E710 module with excellent reading performance. The reading distance up to 10 meters. It supports fast tag read or write with high identification rate. The reader is widely used in RFID system such as logistics, vehicle access control, and anti-counterfeit and industrial production process control system.
Technical Specifications
| Frequency | 902 to 928MHz (US) 865 to 868MHz (EU) |
| Protocol | ISO18000-6C (EPC GEN2) |
| Fast Card Reading | Tag query speed up to 800 tags |
| Communication Interface | Standard interface: USB, RS232, RS485,TCP or IP Optional interface: POE WIFI |
| Support Multi-Language Development | Support C#, Delphi, java, Python, VB |
| With LED Indicator | Check Reader working Status |
| RF Power | 33 dBm (adjustable) |
| Polling Inventory | Multi-antenna port polling fast inventory |
| GPIO Communication | 2 optocoupler input, 2 relay output |
| Support Firmware Remote Online Upgrade | Special functional requirements can be completed through remote upgrades |
| RF power | 33dbm (adjustable) |
| Maximum Query Speed | 800 tags per sec |
| Reading Distance | (0 m to 25 m) 0 ft to 82.0 ft (Depends on external antenna and tag) |
| Data Cache Size | 600 pcs at max 128bits EPC or 180 pcs at max 496 bits EPC |
| Mixed Query | Support simultaneous query of EPC+TID area data |
| Operating Mode | Answer mode Real-time query mode Trigger mode (optional) |
| Judgment Distance | Support output RSSI value |
| Voltage | 12 V 2A |
| Current Consumption | 0.5 A to 1.2 A |
| Communication Interface | standard interface: USB, RS232, RS485, TCP or IP Optional interface: POE, WIFI |
| GPIO Interface | 2 sets of trigger signal input 2 sets of relay signal output |
| Antenna Port | 4 RP TNC female connectors (TNC reverse female connectors) |
| Equipment Size | 170x112x24mm |
| Equipment Weight | 0.6kg (1.32 pounds) |
| Operating Temperature | 14 ºF to 140 ºF (-10 ºC to +60 ºC) |
| Storage Temperature | -4 ºF to 167 ºF (-20 ºC to +75 ºC) |
| Size | 6.6 in X 4.4 in X 0.9 in (170 mm x 112 mm x 24 mm) |
| Weight | (0.6 kg) (600 g) 21.1 oz |
