Overview

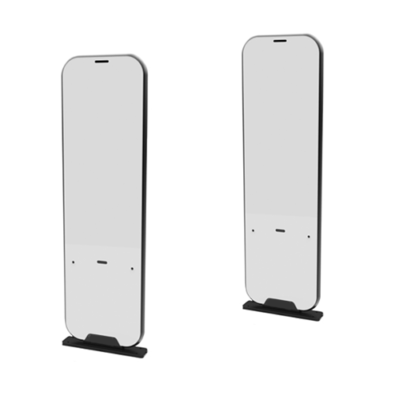

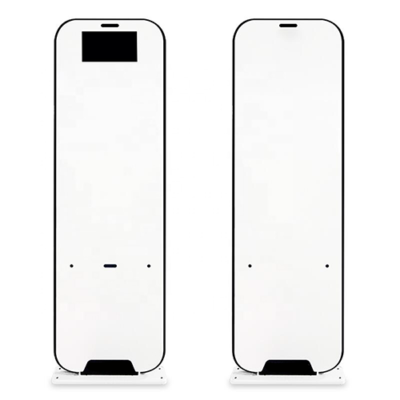

The Inventory Master Multi-tag UHF RFID Portal Retail security gate Reader UHF RFID Portal Reader RFID System Inventory Warehouse is a high-performance RFID tag channel machine. The system uses UHF RFID technology and it is equipped with high-performance master and slave gate antennas, which can quickly detect multiple tags passing through channels and illegal tags with sound and light alarms. It is widely used in libraries, reading rooms, archives, smart retail and tool management.
Technical Specifications
| Frequency | 860 to 960 MHz |
| Protocol | EPC Global UHF Class 1 Gen 2 or ISO 18000 6C |
| Size | 18.46 in × 3.85 in × 0.66 in (469 mm x 98 mm x 17 mm) |
| Storage Capacity Of Alarm Records | ＞100000 records |
| Power Supply | AC 100 to 240 V 50 to 60 Hz |
| Communication Interface | Ethernet or USB or WIFI or RS232 |
| Weight | 33.06 Ib (15 kg) |
| Channel Width
| 31.50 in to 55.12 in (80 cm to 140 cm) 35.43 in (90 cm) recommended |
| Dimension | External 59.52 in × 18.46 in × 3.85 in (1511.5 mm x 469 mm x 98 mm) |
| Housing Material | Acrylic, Aluminum and Sheet Metal |
| Maximum Power Consumption | 25 W |
| Waterproof | Not Support |
| Protocol | ISO 18000 6C |
| Frequency | 860 to 960 MHz |
| Aisle Width | 35.43 in to 86.61 in (90 cm to 220 cm) 35.43 in to 43.31 in (90 cm to 110 cm) suggest |
| Operating Mode | Offline or Networking |
| Waterproof | Not Support |
| Display Screen | 10.1 inch LCD screen to show the flow of people in and |
