Overview

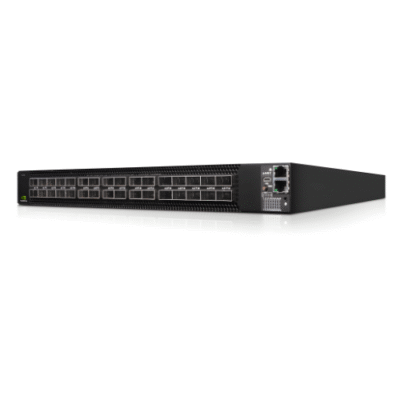

The Inventory Master Open Ethernet Switch for Hyper converged Infrastructures and ESF (Ethernet Storage Fabrics). The SN 2010 switch is the ideal top of rack (ToR) solution for hyper converged and storage deployments. Packed with 18 ports of 10 or 25 GbE and 4 split table ports of 40 or 100 GbE, the SN 2010 can deliver up to 1.7 Tb/s aggregate through put. All Spectrum based switches, including the SN 2010, support low-latency line rate traffic for all packet sizes and are ONIE bootable with support for Cumulus Linux, Onyx and other open-source operating systems with a broad installed base that drives the world’s most innovative data center infrastructures. SN 2010 introduces low latency for 10 or 25 GbE and 100 GbE switching, features a robust implementation of data, control and management planes, and offers the most compact form factor and lowest power consumption.
Features
- 1 + 1 hot-swappable power supplies and four N + 1 hot-swap fans
- Color coded PSUs and fans
- Up to 64 1 or 10 or 25 or 40 or 50 or 100 GbE ports per link aggregation group
- Multi-chassis LAG for active or active L2 multi pathing
- 64-way ECMP routing for load balancing and redundancy
Technical Specifications
| Transmission Rate | 100 GbE |
| Communication Mode | Full-Duplex & Half-Duplex |
| Switch Capacity | 10 G or 25 GbE |
| Ports | 18 GbE x 25 GbE and 4 GbE x 100 GbE |
| Function | LACP, Stackable, VLAN Support |
| Technology | Ethernet |
| Operating System | Onyx |
| Max Speed | 100 GbE |
| Connector Type | QSFP 28 and SFP 28 |
| Throughput | 1.7T b/s 1.26 billion packets per second (Bpps) |
| Lowest Latency | 300 n sec for 100 GbE port-to-port Consistently low latency regardless of packet size, or L 2 vs L 3 forwarding Side by side configuration Small port count |
| Lowest Power | 57 W (ATIS) power consumption |
