Overview

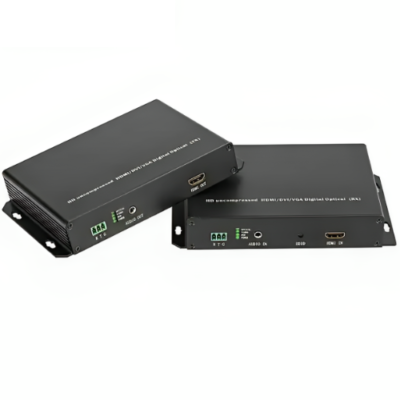

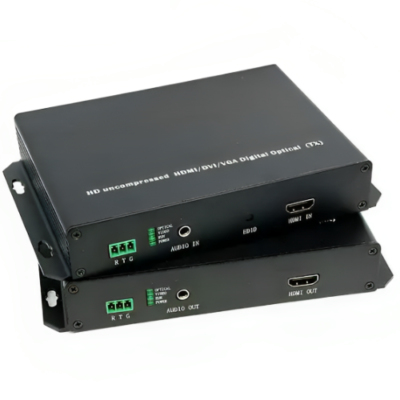

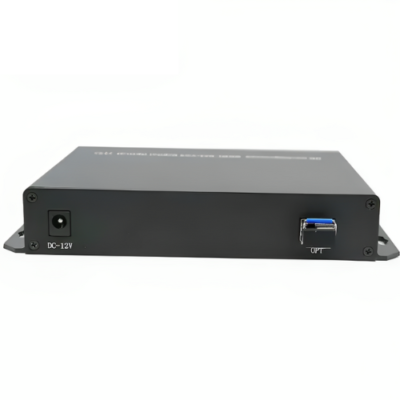

The Inventory Master optic extender has uncompressed digital HD video and high-speed digital optical fibre transmission technology advanced, it can transfer signal source (computer signal source, HD video signal source, HDMI HD signals output from HD DVD or DVR) to long distance terminal easily, up to 6.21 mi (10 KM), with strong anti-interference performance, ensure the signal completed and stable.
Features
- Fully digital, uncompressed HD fibre transmission
- Video resolution up to 1920 x 1080 @ 60 Hz
- Low optical module SFP attenuation (-3 dB)
- 1 channel analogy audio 0.13 in (3.5 mm)
- HDMI 1.3b protocol support
- Automatic display mode identification and configuration
- Built-in automatic balance for clear and stable pictures
- Easy installation, plug-and-play; customization and OEM support
Technical Specifications
| Transmitter-Input | HDMI 1.3×1 RS 232 x 1 Audiox1 |
| Transmitter-Output | LCx1 |
| Receiver-Input | LCx1 |
| Receiver-Output | HDMI 1.3 x1 RS 232×1 Audiox1 |
| Resolution | 1920 x 1200 P 60 or 1920 x 1080I 60 or 1920 x 1080I 50 1920 x 1080 P 60 or 1920 x 1080 P 50 or 1920 x 1080 P 30 1920 x 1080 P 25 or 1920 x 1080 P 24 or 1280 x 720 P 60 1280 x 720 P 50 or 1680 x 1050 P 60 or 1600 x 1200 P 60 1600 x 900 P 60 or 1440 x 900 P 60 or 1400 x 1050 P 60 1366 x 768 P 60 or 1360 x 768 P 60 or 1280 x 1024 P 60 1280 x 800 P 60 or 1024 x 768 P 60 or 800 x 600 P 60 |
| Transmission distance | Single-mode fiber:6.21 mi (10 KM) (standard), 12.42 mi (20 KM), 24.84 mi (40 KM), 37.26 mi (60 KM). Multi-mode fibre: 0.186 mi (300 m) |
| Cable | Single-mode 1-core fibre |
| Operating temperature | -4 °F to 158 °F (-20 ℃ to +70 ℃) |
| Environment humidity | < 90 %, No condensation |
| Power | DC 12 V or 1 A |
| Size | 6.88 in x 4.52 in x 1.18 in (175 mm× 115 mm× 30 mm) |
| Weight | Transmitter:0.88 lb (400 g). Receiver: 0.88 lb (400 g) |
