Overview

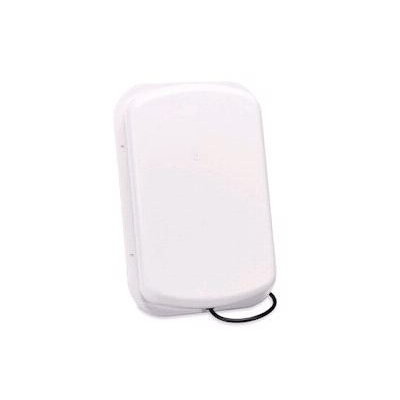

This polarized linear antenna is optimized for the 902 MHz to 928 MHz ISM frequency band. It ensures max imum gain on a single axis for the longest possible read range and penetration.
Technical Specifications
| Frequency Range | 890MHz – 940 MHz |
| Polarization | Linear |
| Gain | 6dBi max |
| Beam Width (3DB) | 40 degrees nominal |
| Cross Polarization Rejection | 20 dB, min |
| Input Impedance | 50 Ohm nominal |
| Return Loss | -15 dB across frequency range |
| Cable | LMR-195, 50 ohm coa× ial, reverse polarity TNC connector |
| Size | 11.18″ × 7.68″ × 1.7″ |
| Weight | 680.40 g |
