Overview

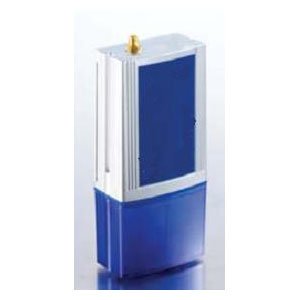

The RFID sensor reader enables long-range localization in both indoor and outdoor environments and is well suited for a variety of wireless applications including identification, tracking and localization of assets and personnel. This highly robust sensor reader operates as a standalone device only and does not require any wired backbone connection. It features real-time data collection and visibility with minimal human intervention and is easy to integrate. This device also features high speed localization which delivers instant identification as well as precise location of assets or personnel within a distance range of 1m (3ft). In addition, it is sealed with IP64 housing which allows outstanding performance even in the most challenging environments.
Key Features
- 2.4 GHz ISM operating frequency
- Compact size, light weight
- Up to 300 m (1000 ft) localization range
- High speed that allows 400 localizations per minute
- Industrial housing
Technical Specifications
| Communication RTLS | |
| Operation mode | Distance Measurement |
| Communication range | up to 300 m (1000ft)* |
| Compatibility | 137005 RTLS series sensors |
| Operating frequency | 2.4 GHz |
| Transmit power | <100mW or local regulations |
| Antennas | |
| Localization (RTLS) | 1 SMA connector for external antenna at 2.4 GHz |
| Performance | |
| Localization rate | Up to 400 sensors per read zone |
| Interfaces | |
| Data interface master/host | i-BUS (RS422) |
| Data interface slave | i-BUS (RS422) for cascading additional i-PORT M’s |
| Status display | 4 LED’s (RTL, RUN, BUS, ERR) |
| Electrical | |
| Power source | 10 – 30 VDC |
| Power consumption | < 2 Watt |
| Environmental Conditions | |
| Operating temperature | -30°C to +70°C (-22°F to +158°F) |
| Storage temperature | -40°C to +80°C (-40°F to +176°F) |
| Humidity | 90% non-condensing |
| Standard/Certification | |
| Europe | CE (EN 300 220-1, -3; EN 300 328, EN 301 489-1, -3; EN 60950) |
| North America | FCC Part 15 (US); Industry Canada |
| Mechanical Data | |
| Dimensions | 97 × 67 × 36 mm (3.8 × 2.6 × 1.4 inches) 153 × 67 × 36 mm incl. cover (6.0 × 2.6 × 1.4 inches) |
| Case Material | Plastic |
| Enclosure rating | IP 40; IP 64 with plastic cover |
| Weight | 150 g (5.29 ounces) |
| *The communication range depends on the antenna type, the antenna cable runs and the environmental conditions. | |
