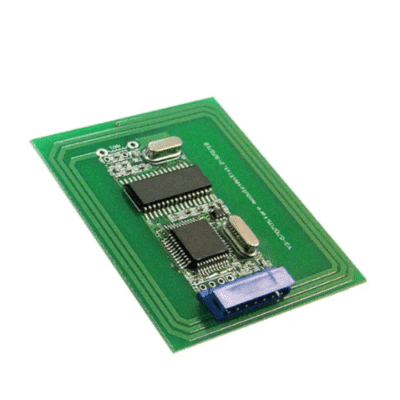

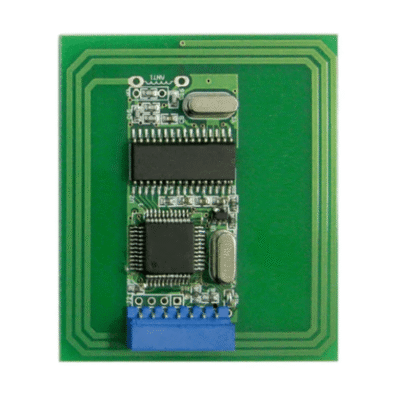

The Inventory Master RFID 13.56 MHz Read and Write Module with Antenna

Name: The Inventory Master RFID 13.56 MHz Read and Write Module with Antenna - The Inventory Master
SKU: TIMHMOD-159

13.56 MHz Frequency. Multi-Block Read and Write. 2.52 in X 2.20 in X 0.27 in Dimensions. Compatibility of MF, MF Ultralight, MF DESFire, and NFC Tag.

SKU: TIMHMOD-159 Category: Bluetooth Low Energy (BLE)

Overview

13.56 MHz Frequency. Multi-Block Read and Write. 2.52 in X 2.20 in X 0.27 in Dimensions. Compatibility of MF, MF Ultralight, MF DESFire, and NFC Tag.

Frequency	13.56 MHz
Support Communication Interface	USB or UART or ABA or RS 232
Power Input	DC 3.3 V or 5 V or 12 V or 18 V
Reading Range	2.36 in to 2.75 in (6 cm to 7 cm)
Protocol	ISO 14443-A or 14443-B or 15693
Temperature	14 °F to 158 °F (10 °C to 70 °C)
Dimension	2.52 in X 2.20 in X 0.27 in (64 mm X 56 mm X 7 mm)
Weight	0.37 oz (10.6 g)
