Features
- Standard RFID function, Printing UHF RFID Tags
- Print production barcode labels and more at up to 7 inches per second1 print speed
- 300dpi thermal print technology for consistently clear text, barcodes, and graphics
- Up to 450m ribbon capacity to support higher volume printing
- Ethernet/LAN connectivity lets you share the printer between multiple users and manage remotely

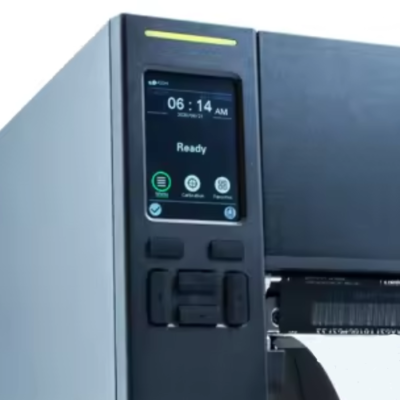

- Navigate intuitively with a 3.5-inch, full-color HVGA touch panel display
- Explore field-upgradeable options to customize your printer, including Wi-Fi®, label cutter, and label peeler
- Make integration easy with WMS and ERP compatibility and a full suite of included emulations, SDKs, and drivers
Technical Specification
| Print Method | Direct Thermal or Thermal Transfer |
| Resolution | 203dpi 300dpi |
| Max Print Speed | 10 ips 7 ips |
| Stripping Mode: MAX.3 ips Cutter Mode: 2 to 10 ips | |
| Max Print Width | 4.2 in (107 mm) 4.1 in (105.7 mm) |
| Max Print Length | 1000 in (25400 mm) 450 in (11430 mm) |
| Max Print Height | Continuous: 5 mm (0.2 in) Tear mode: 50 mm (1.97 in) Peeler mode: 25.4 mm (1 in) Cutter mode: 25.4 mm (1 in) |
| Sensor Type | Gap (Removable), Black Mark (Removable), Head Off Sensor, Ribbon Remaining Sensor, Ribbon Detection |
| Sensor Location | Adjustable: Gap, Black mark Fixed: Ribbon encoder, ribbon end, head open |
| Paper Release Mode | Standard: Continuous, tear off Optional: Peeled, Cuttered |
| Label Parameter | Types Continuous, Die Cut, Black Label, Folded, Cut |
| Wound type External winding | |
| Media Width Tear mode, Peeler mode: 20 mm (0.79 in) to 120 mm (4.72 in) Cutter mode: 20 mm (0.79 in) to 114mm (4.49 in) | |
| Media Length Tear mode: 50 mm (1.97 in) to Max. print length Peeler mode: 25.4mm (1 in) to 152.4mm (6 in) Cutter mode: 25.4 mm (1 in) to 2,286mm (203dpi), 25.4 mm (about 1 in) to 1016 mm (300dpi) | |
| Thickness 0.06 mm (0 in) to 0.28 mm (0.01 in) ordinary label | |
| Max. Diameter 8 in | |
| Core Diameter 1 in to 3 in | |
| Ribbon | Types Wax, Resin, Wax-Resin ribbon |
| Ribbon face type Outer Ink/Inner Ink | |
| Ribbon Width 40 mm (1.57 in) to 110 mm (4.33 in) | |
| Core inner diameter 1 in core | |
| Ribbon Length 1476 ft (450 M), 1 in core, Maximum outer diameter 81.3mm (3.2 in) | |
| Interface | USB USB 2.0 high speed (device) |
| USB host Stand-alone: USB keyboard, USB scanner Storage: USB thumb driver, clone and setup | |
| Serial RS-232 (Max. 115200 bps) | |
| Wired LAN Ethernet 10/100 Mbps | |
| Wireless LAN Wi-Fi option (Slot-in 802.11a/b/g/n module) for those finished goods with Slot-in house already. | |
| WLAN Mode WLAN: Compliant to IEEE 802.11 a/b/g/n with dual band support | |
| WLAN security Open, WEP-Open, WPA-PSK/WPA2 (AES and TKIP) | |
| Memory | SDRAM 128MB |
| FLASH 128MB | |
| Tear Bar | Standard in front panel |
| Label Stripper | Peel off module assembly include internal liner rewinder |
| Cutter | Regular guillotine cutter |
| RTC/Buzzer | Standard |
| Power | Adapter Internal universal switching power supply |
| Operating Characteristics | Operating Temperature 32ºF to 104ºF (0 ºC to 40 ºC) |
| Operating Humidity 25 % to 85 % non-condensing | |
| Storage Temperature −40ºF to 140ºF (-40 ºC to 60ºC) | |
| Storage Humidity 10 % to 90 % non-condensing | |
| Housing | Size 248 mm (9.76 in) x 274 mm (10.79 in) x 436 mm (17.2 in) |
| Weight 20.28 lbs (9.2 kg) |
