Overview

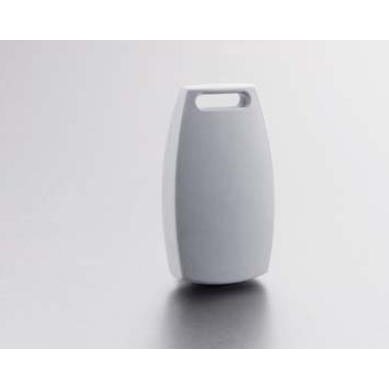

This RFID broadcast tag combined with long-range technologies is ideally suited for demanding environments such as chemical plants, petrol and gas industries and oil rigs.This tag sends dataat distances of up to 150 meters (500 ft) to either a mobile (handheld) or fixed reader (interrogator).
The marker technology enables visibility and control if someone moves in or out through a gate or other zone-based locations. In this application, the inductive marker field informs the sensor about the current location. The tag sends its location information in real-time several times to the reader through its RFID capabilities. Even after the tag has left the marker field, it transmits data steadily at a configurable ping rate.
Key Features
- 150 m (500 ft) read range
- Non-line-of-sight data transmission
- Automatic transmission
- Spot location for gate application
- Industrial housing
Applications
- Chemical plants
- Petrol and gas industries
- Oil rigs
Technical Specifications
| Communication Broadcast 350 | |
| Operation Mode | Transmits Sensor ID and user data in pre-defined interval |
| Read Range | up to 150m (500ft) |
| Compatibility | 227002, 227003, 227004 |
| Operating Frequency | 868 MHz (EU) or 920 MHz (NA) |
| Transmit Power | <1mW |
| Communication Response 350 | |
| Operation Mode | Bi-directional communication (reading log, blink LED, write/readdata) |
| Read Range | up to75m (200ft)* |
| Compatibility | 227002, 227003, 227004 |
| Operating Frequency | 868 MHz (EU) or 920 MHz (NA) |
| Transmit Power | <1mW |
| Communication Marker | |
| Operation Mode | Receives Marker ID and transmits marker information several timesvia Broadcast 350 telegrams |
| Read Range | up to 5m (16ft)* |
| Compatibility | 491013,491014 |
| Operating Frequency | 125 kHz |
| Electrical | |
| Power Source | Lithium Battery (non-replaceable) |
| Battery Monitoring | Yes |
| Data | |
| Data Retention | > 10 years without power |
| rite Cycles | 100,000 writes |
| Memory Size | 10,000 Bytes user definable |
| Identification Code | 48 bit fixed ID |
| Environmental Conditions | |
| Operating Temperature | -40 °C to +70°C (–4 °F to +158 °F) |
| Shock | Multiple drops to concrete from 1m (3ft), 3 times DIN IEC 68-2-27 |
| Humidity | 10% to 95% relative humidity at 30°C |
| Vibrations | 3G, 20 sine wave cycles, 5 to 150 Hz, DIN IEC 68-2-6 5G, noise 5 to 1.000 Hz, 30 minutes, DIN IEC 68-2-64 |
| Configuration | |
| Device | 227002, 227003, 227004 |
| Ping Rate | Configurable from 0.5 to 300 seconds insteps of 0.5 seconds |
| Number of Bursts | Configurable from 0 to 15 |
| Broadcast User Data | Up to 50 Bytes |
| Standard/Certification | |
| Europe | CE (EN 300 220-1, -3; EN 301 489-1,-3; EN 60950) |
| North America | FCC Part 15 (US); Industry Canada |
| Mechanical Data | |
| Dimensions | 56 x 30 x 14 mm (2.2 x 1.2 x 0.6 inches) |
| Enclosure | Plastic |
| Weight | 40 grams (1.41 ounces) |
| Enclosure rating | IP 65 |
