Overview

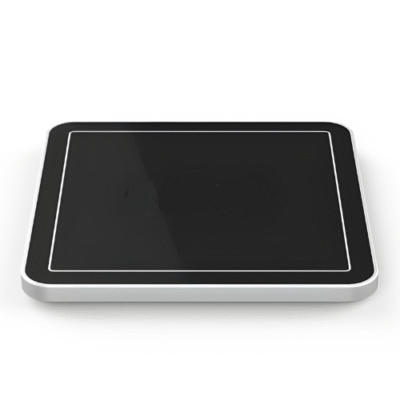

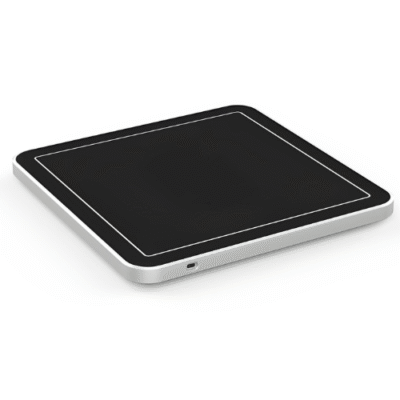

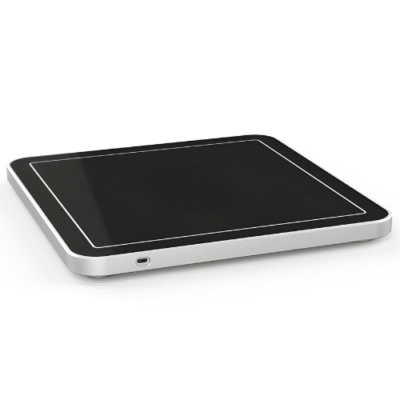

The Inventory Master RFID NON-PERSON SUPERMART UHF RFID Desktop reader RFID is a desktop reading and writing device that supports EPC global UHF Class 1 Gen 2 / ISO 18000-6C protocol. The product integrates a high-performance near-field antenna, which can prevent the tags in the other area (except right above the reader) from being misread or miswritten. It has the characteristics of fast reading and writing speed, high accuracy, strong anti-interference ability and convenient use.The products are widely used in various RFID system application fields such as book management, store supermarket, clothing store,electronic cash register, POS cash register, file management, logistics management, production automation management and so on.Top of Form
Features
- Advanced tag Collision processing algorithm
- FHSS or fixed frequency working mode
- Adjustable output power up to 30 dBm
- Low power consumption, USB powered
- Supports response and active modes
- Configurable output format and parameters
- USB interface supported
- Provides DLL for second development
- Reading hint Buzzer, LED
- Reading distance 2.2 ft (0.7 m)
- Maximum identifying speed: 200 per s
Technical Specifications
| Frequency Range | 840 MHz to 960 MHz Standard: 902 MHz to 928 MHz customized optional |
| Label Protocol | EPC C1G2/ISO18000-6C |
| Fixed Current | 380 mas USB Power supply at 15 dBm |
| Standby Current | ≤100 ma |
| Channel Bandwidth | 250 khz |
| Frequency Hopping Speed | ≤ 2 S |
| Fixed Power | 30 dBm |
| Step Interval | 1 dBm 5 dBm to 30 dBm adjustable by software |
| Radio-Frequency Power Rising Time | ≤ 500 μs |
| Radio-Frequency Power Dropping Time | ≤ 500 μs |
| Adjacent Channel Power Leaking Ratio | ≤ -40 db (± 1 CH) ≤ -60 db (± 2 CH) |
| Frequency Stabilizing Ratio | ± 10 ppm ± 20 ppm |
| Maximum Reading Range | 2.2 ft (0.7 m) Internal 0 dBi antenna |
| Multi-Label | > 200 per s |
