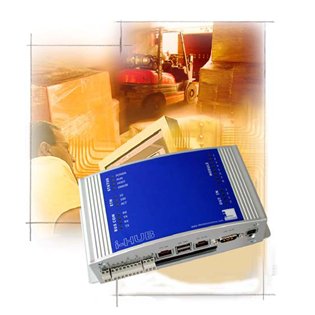

Overview
The RFID hub is able to collect, filter, and edit data from diverse kinds of readers and store tag data to a host system via Ethernet, USB, serial port, WLAN and GPRS/GSM. This hub communicates with specific GAO active RFID tags at a distance of up to 300 feet. Up to eight read/write modules can be concurrently connected to the hub.
An internal real-time clock provides accurate time stamps for data from the tags, and an internal memory saves up to 2,000 messages in order to avoid data loss.
Key Features
| Compatibility with GAO active beacon tags | All long-range tags can be read and written to; |
| A Special Host Protocol | Uniform integration of various technologies |
| PCMCIA-Slots | A variety of communication technologies can be added. |
| SDK | Simple integration into custom applications |
| Standard Operating System | Allows for “stand-alone application” option. |
Technical Specifications
| Operating System | Linux |
| Processor | XSCALE PXA225 400 MHz |
| DRAM | 64 MB |
| Flash | 128 MB |
| Real-Time Clock | |
| Ethernet | 10/100 Mbit |
| Interfaces | |
| 2 x USB Host | |
| 1 x USB Device | |
| 1 x RS232 Monitor SS | |
| 1 x RS232 | |
| 1 x RS485 | |
| 1 x RS422 (+24V output for up to 8? modules) | |
| 2 x PCMCIA Type II | |
| 2 x Relay Output | |
| 2 x Opto-coupled digital input | |
| Status Indicators | 23 LEDs |
| Electrical | |
| Input Power | PoE (Power-Over Ethernet) 24V DC, ≤ 10 W |
| Standards / Safety | CE and EN 300 220 |
| Environmental | |
| Operating Temperature | 0 °C to 50 °C (32 °F to 122 °F) |
| Optional ext. Temperature | –30 °C to 70 °C (–22 °F to 158 °F) |
| Storage Temperature | –40 °C to 80 °C (–40 °F to 176 °F) |
| Humidity | 90% non-condensing |
| Physical | |
| Dimensions | 189 mm x 103 mm x 56 mm (7.44 in. x 4.06 in. x 2.2 in.) |
| Material | Aluminum |
| Weight | 0.8 kg (28.2 ounces) |
| Enclosure Rating | IP 20 |
