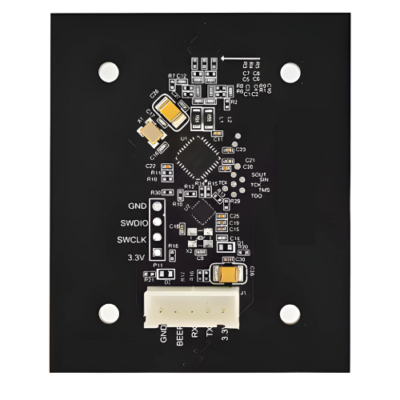

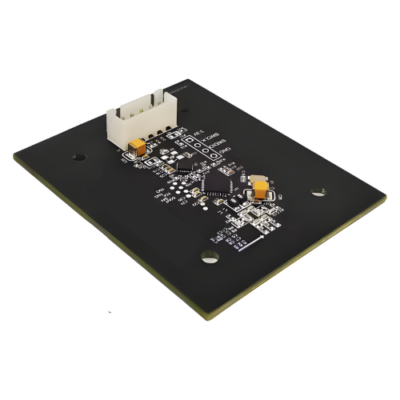

The Inventory Master RFID Reader HF RFID Reader Module For Inventory Management
The Inventory Master RFID Reader HF RFID Reader Module For Inventory Management
  1. The Inventory Master RFID Reader HF RFID Reader Module For Inventory Management
  2. The Inventory Master RFID Reader HF RFID Reader Module For Inventory Management

The Inventory Master RFID Reader HF RFID Reader Module For Inventory Management

This The Inventory Master RFID Reader Module, operating at 13.56MHz, facilitates efficient inventory management with seamless integration and reliable performance.

SKU: TIMHF-3544 Category:

Technical Specifications

Frequency Range13.56MHZ
Air Interface ProtocolEPC global UHF Class 1 Gen 2/ISO-18000-6C
Frequency Modulation MethodBroad spectrum frequency modulation (FHSS) or fixed frequency, can be set by software
InterfaceTTL Uart interface, Wiegand 26, Wiegand 34
GPIO2 inputs 2 outputs (3.3V level)
Communication Baud Rate115200 bps (default and recommended), 38400bps
Read and Write Distance3.94 in to 5.91 in (10cm to 15cm)
Reading and Writing TimeThe average reading time per word (32bits) is 6ms, and the average writing time per word (32bits) is 50ms;
Inventory Tag Peak Speeddepend on tags
Working VoltageDC 3.5-5V
Standby Current<80mA (EN pin high level)
Sleep State Current<100uA (EN Pin low level);
Start Time<100mS
Operating Temperature-4°F to 158°F (- 20 °C to + 70 °C)
Storage Temperature-4°F to 185°F (- 20 °C to + 85 °C)
Cooling MethodAir cooling (no external heat sink required)
