Overview

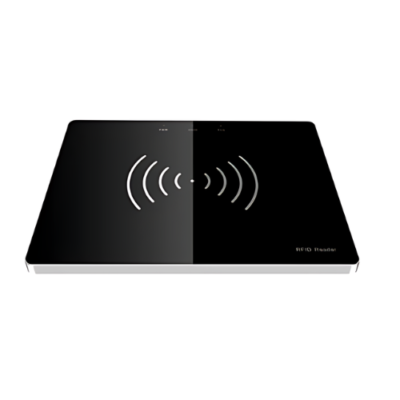

The Inventory Master product is a high-performance ULTRA-high frequency RFID integrated device with a built-in directional circular polarization antenna based on the R2000 read-write engine design, fully supports EPC global C1 Gen 2 ISO 18000-6C, ISO18000-6B standards of electronic tags. It can be widely used in washing, shoes, clothing factories, intelligent manufacturing stations, bank bills, books and files, and other radio frequency identification systems.
Technical Specifications
| Frequency Support | 865 MHz to 868 MHz or 902 MHz to 928 MHz (can be adjusted according to different countries or regions) |
| Protocol Support | EPC global C1 Gen 2 ISO 18000-6C |
| Antenna | 2 dual-array sub-array antennas, which can control the reading area in a limited way, and the gain is greater than 7 DB |
| Shell | Face material toughened glass, aluminum alloy shell |
| Frequency Hopping Method | Work with wide-spectrum frequency hopping (FHSS) or fixed-frequency transmission |
| System | Linux |
| RFID Read And Write Power | Output power software adjustable, step interval ± 1 db, maximum 33 dBm |
| RFID Reading Speed | ＞700 sheets per sec |
| Tag Cache | 20 W labels at 96-bit EPC |
| RSSI Strength Detection | Support |
| Equipment Power Supply | Power adapter: 12 V to 24 V per 5 A |
| Indicator Light | POWER: Red LED, power indicator COMM: Green LED communication indication TAG: Blue LED electronic label operation indicator |
| Equipment Power Supply | Power adapter: AC input 100 V to 240 V per 50 Hz to 60 Hz and DC Output 12 V per 5 A DC power supply: 12 V to 24 V per 5 A |
| Power | 5 W to 24 W |
| Protocol | RS- 232, TCP to IP, Modbus, HTTP or HTTPS, MQTT, RabbitMQ |
| Hardware Interface | RS232, RJ45, USB (for debugging) |
| Certification And Qualification | ROSH, FCC |
| Development Language | C#, JAVA |
| Development Environment | Linux, Android, Windows, PLC, Web |
| Working Humidity | 5 % to 95 % RH, no condensation |
| Operating Temperature | -4 °F to 131 °F (-20 ℃ to +55 ℃) |
| Storage Temperature | -4 °F to 185 °F (-20 ℃ to +85 ℃) |
| Size | 27.56 in x 19.69 in x 0.96 in (700 mm x 500 mm x 24.5 mm) |
| Weight | 11.02 lbs (5 Kg) |
